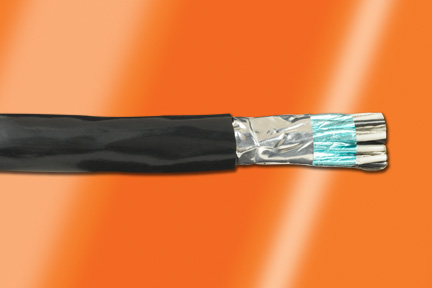

Image is representational - see mfr. specs

1896/6C-SL005

The 1896/6C-SL005 is a 6-conductor, 20 AWG multi-conductor cable with a slate PVC jacket for communication and control applications. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 1896/6C-SL005 is a multi-conductor communication and control cable featuring six 20 AWG stranded tinned copper conductors. Each conductor is insulated with PVC and color-coded for easy identification, all cabled together with a minimum of 4.0 twists per foot. The cable is finished with a durable, slate-colored PVC jacket, resulting in a nominal outer diameter of 0.251 inches and a voltage rating of 300 VRMS. It is rated for an operating temperature range of -20Â°C to 80Â°C and holds UL AWM Style 2509 and CSA CMG certifications. This versatile cable is ideal for use in computer interconnects, control systems, and general-purpose instrumentation.

Product Highlights:

Potential Applications:

Search Keywords: 18966CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

1896/6C-SL005

Alias/AKA:

1896/6C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
