6710-RD005

Alpha Wire

Hook Up Wire - Stranded - 28 (7/36) AWG - 600V - mPPE - Red - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

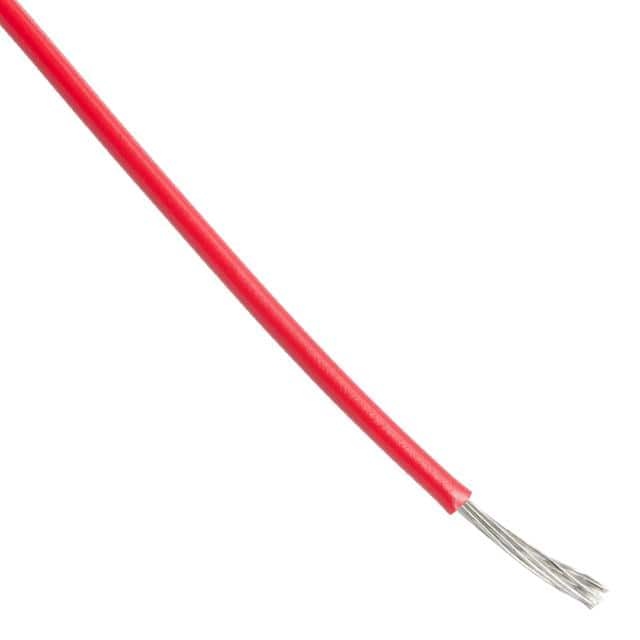

6710-RD005 is a single-conductor hookup wire designed for general-purpose electrical interconnections in industrial and electronic applications. The wire features a 28 AWG (7/36) tinned copper conductor with a 0.0095" wall nominal modified polyphenylene ether insulation, providing an outer diameter of 0.034" ± 0.002". It is rated for 600 V RMS at 105°C and complies with UL AWM/STYLE 11028 VW-1, CSA C(RU) AWM I A/B FT1, and is halogen-free per IEC 60332-2 flame behavior standards. The wire operates reliably across a temperature range of -40°C to 105°C with a maximum pull tension of 1.37 lbs and a minimum bend radius of 10 times the cable diameter. This product is ideal for control circuits, instrumentation, and equipment wiring where flame resistance and environmental compliance are required.

Product Highlights:

Potential Applications:

Search Keywords: 6710RD005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6710-RD005

Alias/AKA:

6710-RED-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
