6717-WH005

Name: 6717-WH005
Brand: Alpha Wire
SKU: 39133598
Price: 219.92 USD
Availability: InStock

Alpha Wire

Hook Up Wire - Stranded - 14 (41/30) AWG - 600V - mPPE - White - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

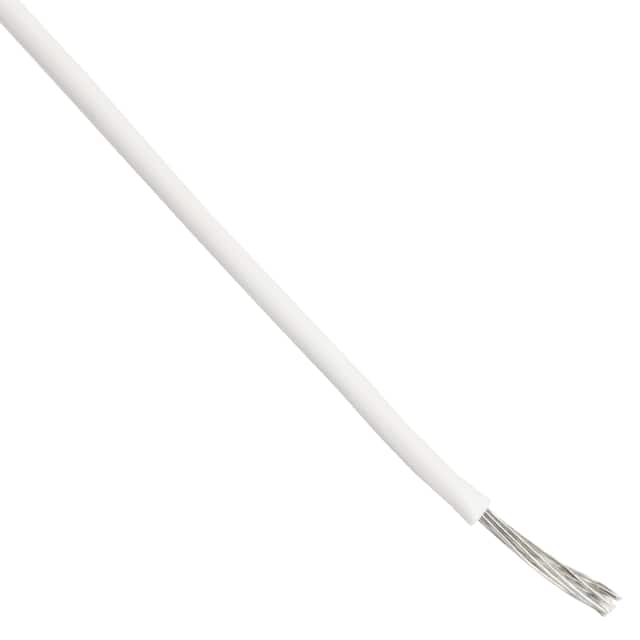

6717-WH005 is a single-conductor 14 AWG hookup wire manufactured by Alpha Wire, designed for general-purpose electrical applications requiring reliable insulation and flame resistance. The wire features a tinned copper conductor with a modified polyphenylene ether insulation wall of 0.011 inches nominal thickness, providing a total outer diameter of 0.096 ± 0.002 inches. It is rated for 600V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C/RU AWM I A/B FT1 specifications, with halogen-free construction and compliance with IEC 60332-2 flame behavior standards. The wire exhibits a conductor DC resistance of 2.8 O/1000ft at 20°C and an inductance of 0.03 µH/ft, with a maximum pull tension of 32 lbs and a minimum bend radius of 10 times the cable diameter. This product is ideal for internal wiring in electronic equipment, control circuits, and applications where flame-retardant, RoHS-compliant wire is required.

Product Highlights:

Potential Applications:

Search Keywords: 6717WH005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6717-WH005

Alias/AKA:

6717-WHITE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
