106-M2-P10-2A by e-t-a engineering technology

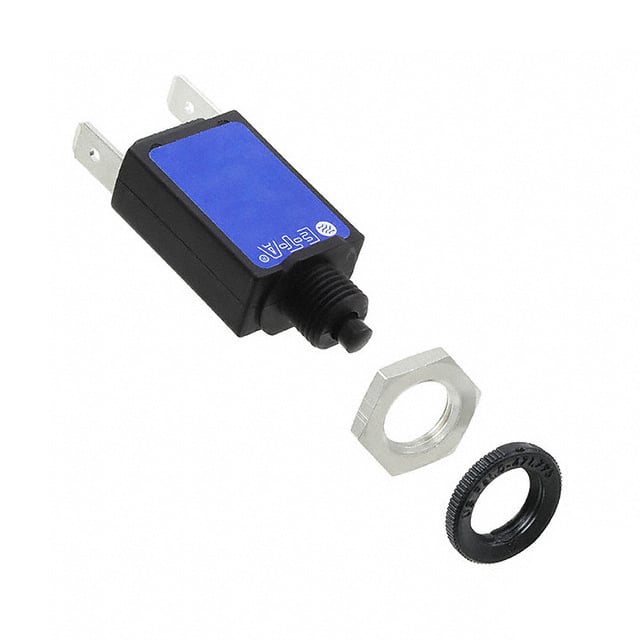

Image is representational - see mfr. specs

106-M2-P10-2A

E-T-A Engineering Technology

Circuit Breaker Thermal 1Pole 2A 240VAC/48VDC ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 106-M2-P10-2A is a miniaturised single-pole thermal overcurrent circuit breaker designed for threadneck panel mounting with 3/8-27UNS thread, featuring P10 blade terminals (DIN 46244-A6.3-0.8, QC .250) and a push-to-reset, tease-free, trip-free snap action mechanism compliant with EN 60934 (IEC 60934). It operates at voltage ratings of AC 240 V or DC 48 V (UL: AC 250 V; DC 48 V) with current ratings from 0.05 to 10 A, and maintains typical life performance of 1,000 operations at 2× rated current for 0.05–5 A ratings. The device is rated for an ambient temperature range of -20 to +60 °C, features reinforced insulation with a dielectric strength of AC 3,000 V in the operating area, and has an insulation resistance exceeding 100 MO at DC 500 V. Common applications include motors, transformers, solenoids, printed circuit boards, hand-held machines and appliances, marine applications, and caravans, where reliable overcurrent protection and compact form factor are essential.

Search Keywords: 106M2P102A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-T-A Engineering Technology
Part No:
106-M2-P10-2A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
TN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Type:
Thermal2867
Voltage Rating:
2402868VAC,482868VDC
Number of Poles:
12860
Current Rating:
2 A
Terminal Design:
Quick Connect2865
Operating Temperature:
-20 to 60 °C
Mounting:
Panel Mount2859

IN STOCK: 56

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
5
$11.36
25
$10.78
50
$10.54
100
$6.98
250
$6.80
500
$6.72
1,000 +
$6.67
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
