DT-2R-A7 by honeywell

DT-2R-A7

Honeywell

MICRO SWITCH™ Specialty Large Basic Switches: DT Series, Double Pole Double Throw (DPDT), 10 A 125/250 Vac, Pin Plunger, 3,3 to 5,6 N [12 to 20 oz] Higher Operating Force, 4-40 UNC Round Head Screw Termination with Lock Washers, Flexible Insulator, Mounting Holes will Accept Pins or Screws, UL, CSA, Military Part Number MS25008-1 ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Snap Action Switches are switch devices that are used to open or close an electrical circuit at a rapid speed. These devices are also known as micro switches and work with lever, pushbutton, and roller actuators. They are generally used in irrigation systems, semi-trailer trucks, timing devices, office equipment, medical equipment, valves, and test instruments.

DT-2R-A7 Snap Action Switch from Honeywell is a standard basic micro switch. This Honeywell Switch features two independent Single Pole Double Throw circuits in a single housing. Both these circuits are activated by one actuator. The design of this Honeywell Snap Action Switch allows various wiring combinations, as well as mounting interchangeability with type Z switches.

Product Highlights:

  • Mounting interchangeability with type Z switches
  • Rated for 10 A at 240 Vac
  • Temperature tolerance to 82 °C [180 °F]
  • Design permits several wiring combinations

Potential Applications:

  • Irrigation systems
  • Semi-trailer trucks
  • Timing devices
  • Office equipment
  • Test instruments
  • Medical/dental equipment
  • HVAC equipment
  • Manually operated devices
  • Valves

Search Keywords: DT2RA7

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
DT-2R-A7
RoHS:
Yes
HTS:
8536507000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Pin Plunger
Contact Rating @ Voltage:
10@250VAC A
Maximum Movement Differential:
1.52 mm
Operating Force:
5.56 N
Termination Style:
Screw
Dimension:
49.3 x 17.5 x 32.4 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 140

Can Ship immediately

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$172.535
3
$168.261
5
$161.617
10 +
$150.040
Log in for special pricing
Click for Quote

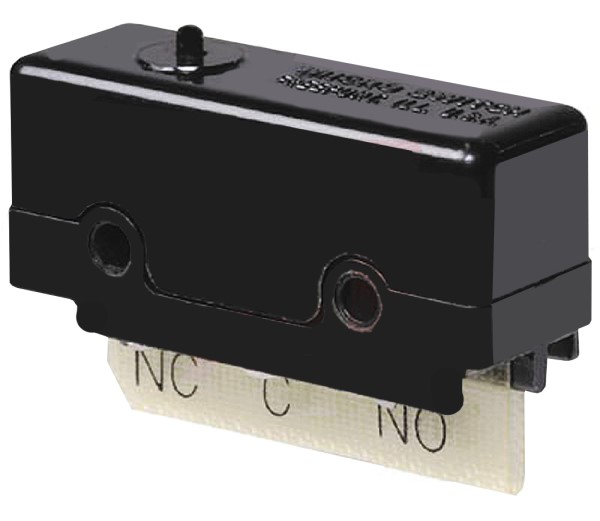

Older Equivalent
DT-2R-D829
DT-2R-D829
VIEW PRODUCT
