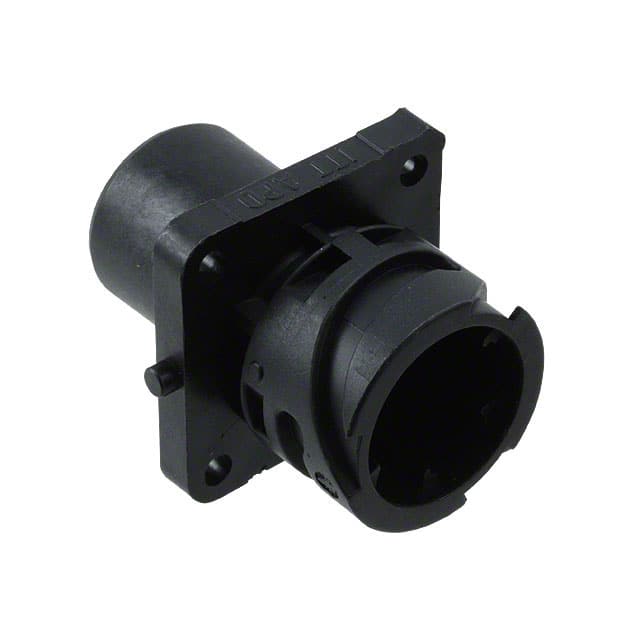

Flange Receptacle, for press-in contacts, 7-way , Black
Search Keywords: APD1AP7EP
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
APD-1AP7EP
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:
100
Humidity Range:
up to 95 %
Series:
APD 7-way
Temperature Range:
-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Operating Voltage:
48 VDC
Vibration Resistance:
Sine, 200 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Operating Current:
see derating curve (catalog)
Voltage Proof:
1000 VAC, 60 seconds
Static Load:
350 N (ISO 15170-2, Sec. 4.6)
Coding (Mechanical Keying And Visual Color Coding):
Code 1 - black (RAL 9005)
Contact Type:
for Press-in contacts
Gender:
Pin
Coupling Torque:
1,2 Nm max
Coupling Nut Material:
PA 66 GF
Sealing Material:
HNBR (alternative FKM)
Durability Rating:
50 Mating Cycles
Housing Material:
PBT GF
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Dynamic Impact:
2 J (49mm- ball- drop- test, height 400mm)
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Sealing:
IP 67 (DIN EN 60529)
Contact Resistance:
5 mΩ max
Industrial Climate:
SO2, 0,67 %
Connector Type:
Flange Receptacle
Insulator Resistance:
10 MΩ min.
IN STOCK: 436
Can Ship immediately
MOQ for In Stock Qty: 5
MOQ for out of Stock Qty: 125
Factory Lead-Time 12 Weeks
Price (CAD)
Qty
Unit Price
5
$14.793
25
$14.579
50
$14.348
125
$14.134
250
$8.697
375
$6.891
500
+
$6.753
