142-0701-851 by johnson / cinch connectivity solutions

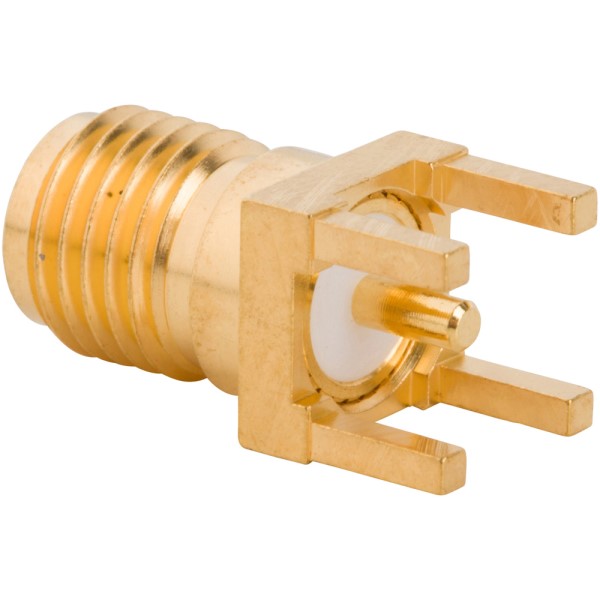

Image is representational - see mfr. specs

142-0701-851

Johnson / Cinch Connectivity Solutions

SMA Jack Assembly, End Launch

Datasheet
RoHS Compliant
Tray Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 142-0701-851 from Johnson is a straight SMA edge (end) launch jack receptacle connector. The SMA connectors are precision connectors for microwave applications up to 18GHz and impedance of 50 ohm.

Search Keywords: 1420701851

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Johnson / Cinch Connectivity Solutions
Part No:
142-0701-851
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Tray
Type:
SMA
Impedance:
50 Ohm
Operating Frequency:
0 to 18 Hz to GHz
Gender:
RCP
Mounting:
Edge Mount
Body Orientation:
Straight
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
-65 to 165 °C
Dimension:
9.52 x 14.27 x 7.92 mm

IN STOCK: 0

On Order: 9,981   can ship 10/5/26
On Order: 25,000   can ship 3/1/27

Minimum Order Quantity: 5

Factory Lead-Time 53 Weeks

Price (USD)

Qty
Unit Price
5
$6.95
50
$4.21
100
$3.79
250
$3.48
500
$3.20
1,000
$3.14
3,000
$3.13
5,000 +
$3.11
Suppliers Standard Package
