1543223 by phoenix contact

1543223

Phoenix Contact

Bus system connector - Ethernet CAT5 (100 Mbps) - 4-position - shielded - Plug straight M12 - D-coded - Insulation displacement connection - knurl material: Nickel-plated brass - external cable diameter 4 mm ... 8 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1543223 is a 4-position, straight plug, M12 bus system connector. This D-coded connector is categorized as Ethernet CAT5, 100 Mbps and features 360° shielding for reliable signal transmission in environments with electromagnetic interference. Connection method is by insulation displacement which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish and knurl material is nickel-plated zinc brass. The product has a length of 61mm, and external cable diameter of 4mm to 8mm. Conductor cross section is 22 to 26 AWG.

Search Keywords: 1543223

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1543223
RoHS:
Yes
HTS:
8536694020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Body Orientation:
Straight

IN STOCK: 11

Ships today, if you order in

Manufacturer Stock: 1,786   can ship 12/5/25

Factory Lead-Time 4 Weeks can ship 12/18/25

Price (USD)

Qty
Unit Price
1
$36.617
3 +
$34.783
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

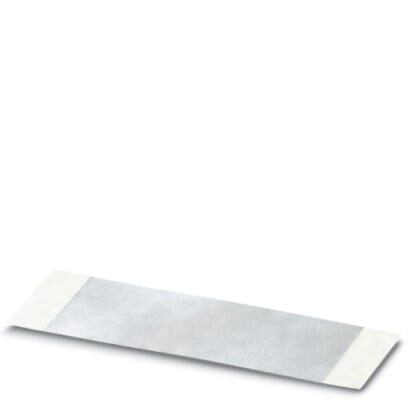

ALU-SB

Shielding foil - for fixing the braided shield of shielded cables. Length: 4 cm - width: 1 ...

TSD 08 SAC

Torque screw driver with preset torque of 0.8 Nm - with 4 mm hexagon for accommodating SAC ...

PROT-M12 FS-PA-CHAIN

M12 sealing cap made of plastic with fixing band - for sensor cables - for free M12 plugs

TSD 04 SAC

Torque screwdriver - with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connect ...

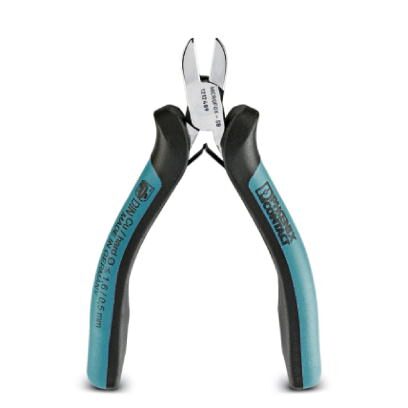

MICROFOX-SB

Electronic diagonal cutter - round head - without chamfer - with opening spring - mirror-p ...

TSD-M SAC-BIT ADAPTER

Adapter bit for TSD-M...torque tools - E6.3-1/4" drive with 4 mm hexagon to accommodate SA ...

SACC BIT M12-D20

Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm - for 4 mm h ...

WIREFOX-D 40

Stripping tool - for stripping cables of 4.5 mm €‘ 40 mm€‘˜ - insulation thickness of up t ...

VS-CABLE-STRIP-VARIO

Stripping tool, for the multi-level stripping of shielded cables

Show 7 More
