RECOMMENDED REPLACEMENT

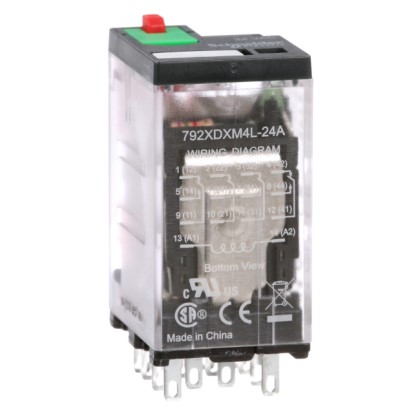

Image is representational - see manufacturer specifications
782XDX2M4L-24A
Electromechanical Relay 24VAC 180Ohm 10A 4PDT (27.9x21)mm Socket Power Relay
RoHS Compliant
Discontinued & Replaced
Certificate of Compliance
DESCRIPTION
Electromechanical Relay 24VAC 180Ohm 10A 4PDT (27.9x21)mm Socket Power Relay
Search Keywords: 782XDX2M4L24A
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XDX2M4L-24A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier's Standard Package:
10
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
4PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 55 °C
Coil Resistance:
180 Ohm
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 1,459
Ships today, if you order in
Minimum Order Quantity: 10
Multiple: 10
Price (USD)
Qty
Unit Price
10
$6.55
30
$6.45
50
$6.30
100
$6.21
250
$5.51
500
$4.86
1,000
+
$4.80
