D2D40
D2D40

In Stock: 120

Minimum Order: 1

VIEW PRODUCT

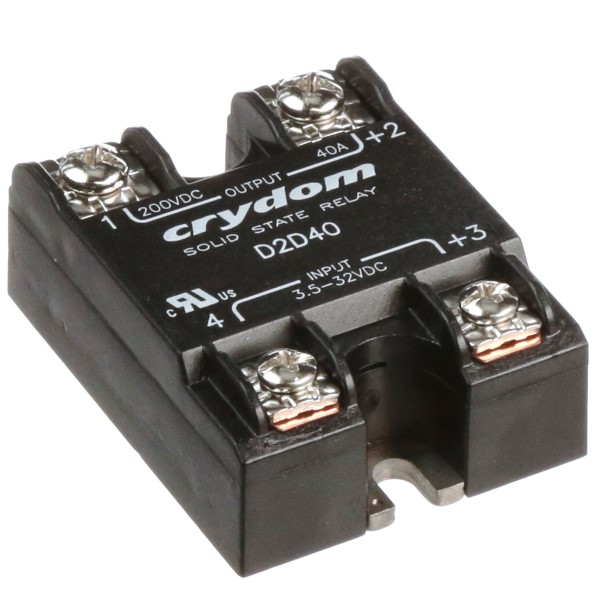

D2D40L by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

D2D40L

Solid-State Relay - Control Voltage 3.5-32 VDC - Max Input Current 15 mA - Output 1-200 VDC - Max Load Current 40 A - 4 Pins - 1 Form A - Screw Termination ...

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The D2D40L is a solid-state relay 1-DCL series with MOSFET output. Input control voltage range is 3.5-32 VDC. Operating voltage is 1-200 VDC and the max load current is 40 A. 1-DC series relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 3750 Vrms. Mounting type: panel mount.

Search Keywords: D2D40L

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D2D40L
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
200 V
Maximum Output Current:
40 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 23 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 38

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$155.19
5
$148.93
10
$145.44
40
$142.55
80
$135.36
120
$132.72
280 +
$118.90
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes
