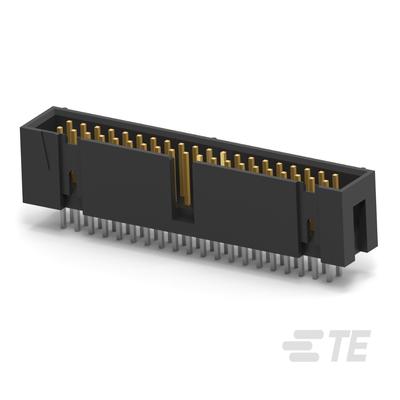

636-4027 by te connectivity / buchanan brand
Image is representational - see mfr. specs

636-4027

TE Connectivity / Buchanan Brand

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

636-4027 is a 40-position modular connector housing assembly manufactured by TE Connectivity (Buchanan brand). The housing is constructed from PCT material with UL94V-O flame rating and black color, featuring phosphor bronze posts with precision plating specifications: 0.00038 inches minimum gold on mating areas, 0.00254 inches minimum tin-lead on solder ends, and 0.00127 inches minimum nickel overall. The connector dimensions include a 4.19 mm [1.65 inch] height, 48.26 mm [1.900 inch] length, and 55.88 mm [2.200 inch] width, with 2.54 mm [0.100 inch] center spacing between positions. This assembly is designed for high-reliability applications requiring robust electrical connections and is commonly used in telecommunications, industrial control systems, and data communication equipment where durable, repeatable mating cycles are essential.

Search Keywords: 6364027

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Buchanan Brand
Part No:
636-4027
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
40
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Termination Method:
Solder
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,185

Ships today, if you order in

Minimum Order Quantity: 35

Price (USD)

Qty
Unit Price
35
$2.19
200
$2.10
700
$2.02
1,800
$1.95
5,400 +
$1.86
Log in for special pricing Click for Quote Price Match Request
