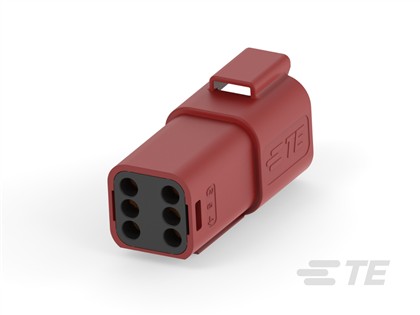

Possible Replacement
2600034-3
2600034-3

In Stock: 10,000

Minimum Order: 25

VIEW PRODUCT

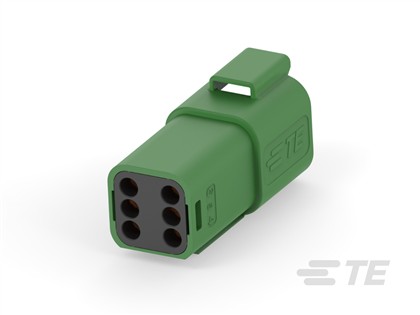

Possible Replacement
2600034-9
2600034-9

In Stock: 9,500

Minimum Order: 27

VIEW PRODUCT

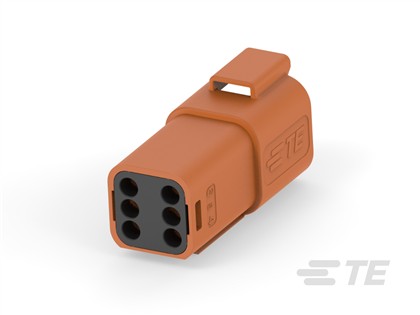

Older Equivalent
2600034-8
2600034-8

In Stock: 11,000

Minimum Order: 27

VIEW PRODUCT

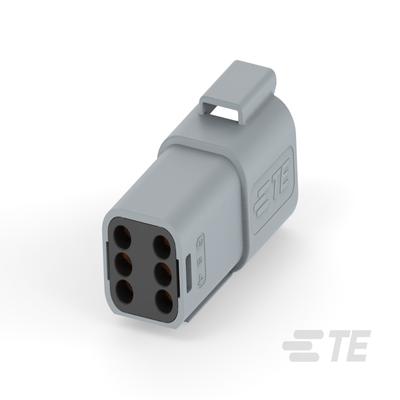

DT04-6P-C015 by te connectivity / deutsch automotive
Image is representational - see manufacturer specifications
TE Connectivity / Deutsch Automotive Authorized Distributor

DT04-6P-C015

REC, 6P, GRY, E ...

View Datasheet Ask the Datasheet
RoHS Compliant
Pack Packaging
Accessories
Certificate of Compliance

DESCRIPTION

TE CONNECTIVITY / DEUTSCH AUTOMOTIVE part DT04-6P-C015 is a reliable and durable rectangular connector specially designed for automotive applications. It has a rectangular shape and comes with 6 pins, making it ideal for various electrical connections. This connector features a rugged construction and is made from high-quality materials to ensure superior performance and resistance to different environmental conditions. The DT04-6P-C015 connector is color-coded in grey, simplifying identification and installation. Whether used in cars, trucks, or other automotive vehicles, this connector ensures a secure and efficient connection, providing reliability and peace of mind.

Search Keywords: DT046PC015

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-6P-C015
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Pack
Primary Locking Feature:
Integrated in Housing
Packaging Method:
Box
Width:
.82 in, 20.83 mm
Packaging Quantity:
600
Terminal Position Assurance:
Yes
Length:
1.808 in, 45.92 mm
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Contact Current Rating (Max):
13 A
Degree of Protection:
IP68 , IP6K9K
Height:
.951 in, 24.16 mm
Blank Cavity Position:
0
Connector System:
Wire-to-Wire
Operating Voltage:
250 VAC
Sealable:
Yes
Serviceable:
Yes
Primary Product Color:
Gray
Strain Relief:
Add By Accessory
Centerline (Pitch):
.359 in, 9.12 mm
Number of Rows:
3
Circuit Application:
Power & Signal
Body Material:
PA GF
Connector Position Assurance Capable:
No
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Hybrid Connector:
No
Row-to-Row Spacing:
.175 in, 4.45 mm
Mounting Feature:
With
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Connector & Housing Type:
Housing for Male Terminals
Mating Pin Diameter:
.0625 in, 1.59 mm
Polarized:
Yes
Number of Positions:
6
Connector Mounting Type:
Cable Mount (Free-Hanging) , Fixing Screw
Cable Exit Angle:
180 °
Agency/Standard:
SAE J2030
Operating Temperature (Max):
125 °C, 257 °F
  Possible Replacement options available.  See Alternatives

IN STOCK: 79

Ships today, if you order in

On Order: 1,200   can ship 11/26/26
On Order: 1,200   can ship 1/7/27

Minimum Order Quantity: 25

Factory Lead-Time 14 Weeks
