HDP26-24-23SE-L015 by te connectivity / deutsch automotive

HDP26-24-23SE-L015

TE Connectivity / Deutsch Automotive

PLG, 23P, BLK, E, THD, 16, S ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

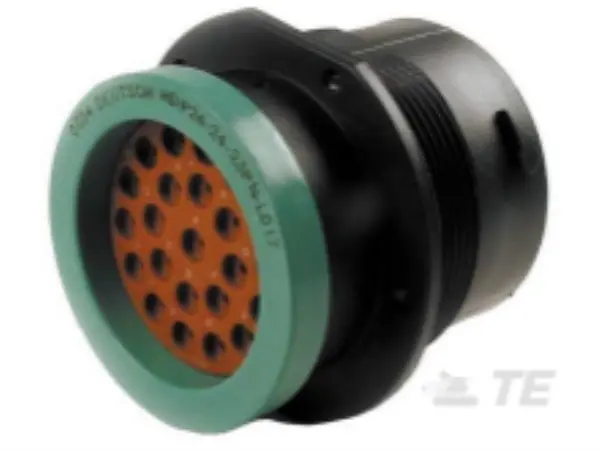

The TE Connectivity / DEUTSCH Automotive HDP26-24-23SE-L015 is a high-performance circular connector designed for robust and reliable automotive applications. This plug features 23 contact positions, providing versatile connectivity solutions suitable for a variety of complex electrical systems. It boasts a durable black thermoplastic housing that ensures resistance to harsh environments, making it ideal for both on-road and off-road vehicles. The connector is equipped with a threaded coupling mechanism that ensures secure mating and easy installation. Additionally, it supports size 16 contacts, offering enhanced current handling capabilities. With a sealing system rated to withstand extreme conditions, the HDP26-24-23SE-L015 is an excellent choice for ensuring long-lasting and dependable electrical connections in demanding automotive applications.

Search Keywords: HDP262423SEL015

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
HDP26-24-23SE-L015
RoHS:
Yes
HTS:
8538908180
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Packaging Quantity:
1
Strain Relief:
Add By Accessory
Degree of Protection:
IP67
Serviceable:
Yes
Connector Position Assurance Capable:
No
Sealable:
Yes
Connector System:
Wire-to-Wire
UL Flammability Rating:
20mm Flame Test per Standard UL-94
Number of Positions:
23
Connector & Housing Type:
Housing for female terminals
Terminal Position Assurance:
No
Primary Product Color:
Black
Cable Exit Angle:
180°
Primary Locking Feature:
Contact Retainer
Contact Current Rating (Max):
13 A
Blank Cavity Position:
0
Packaging Method:
Box
Product Length:
2.183 in, 55.45 mm
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Operating Voltage:
250 VAC, 250 VDC
Mating Pin Diameter:
.063 in, 1.59 mm
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Operating Temperature (Max):
125 °C, 257 °F
Product Width:
1.95 in, 49.53 mm
Connector & Contact Terminates To:
Wire & Cable
Circuit Application:
Power & Signal
Connector Height:
1.95 in, 49.53 mm
Mating Alignment:
With
Connector Shape:
Circular
Contact Type:
Socket
Contact Size:
Size 16
Mating Alignment Type:
Guide Slot
Connector Mounting Type:
Cable Mount (Free-Hanging)
Housing Material:
PA GF

IN STOCK: 0

On Order: 100   can ship 1/19/26

Factory Lead-Time 15 Weeks

Price (CAD)

Qty
Unit Price
1
$39.155
5
$31.024
10
$29.233
25
$26.477
50
$24.776
100
$23.704
250 +
$22.311
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides
