E13-00K by zf electronic systems

E13-00K

ZF Electronic Systems

Snap Action Switch - SPDT - Roller - 15A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

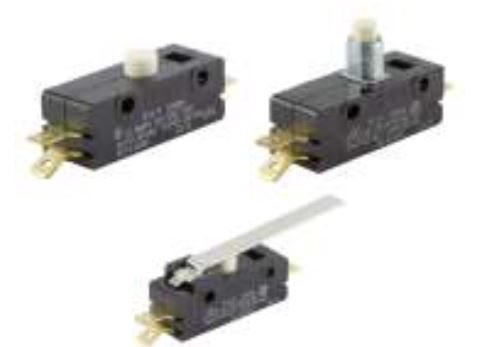

The ZF Electronics Corp E13-00K is a high-quality snap action switch designed for reliability and durability. This SPDT (Single Pole Double Throw) switch features a roller mechanism for smooth actuation and is capable of handling up to 15A of current at 125/250VAC or 2A at 48VDC. It is equipped with quick connect terminals for easy installation and screw mounting for secure placement. Perfect for a variety of applications where a reliable switch is required.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E13, E14, E29, E30 and G13 Series.

Search Keywords: E1300K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E13-00K
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
672
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Stainless Steel/Steel/Thermoplastic Nylon/Roller Lever
Contact Rating @ Voltage:
1118.55 A
Maximum Movement Differential:
2.36 mm
Operating Force:
0.98 N
Termination Style:
Quick Connect,Faston
Dimension:
88.43 x 16.26 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 1,318

Ships today, if you order in

Minimum Order: 5

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
5
$7.169
25
$5.593
100
$5.232
250
$4.903
672
$4.862
1,344
$4.810
2,688
$4.790
5,376 +
$4.759
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
