E14-00M by zf electronic systems

E14-00M

ZF Electronic Systems

Snap Action Switch - SPDT - Button w/ferrule - 25A@125/250VAC 2A@48VDC - Quick Connect - Screw Mount ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

E14-00M is a high-quality Snap Action Switch manufactured by ZF Electronics Corp. It features a Single Pole Double Throw (SPDT) configuration with a durable button design and ferrule for easy operation. This versatile switch can handle up to 25A at 125/250VAC and 2A at 48VDC, making it suitable for a wide range of applications. The quick connect feature allows for convenient installation, while the screw mount ensures a secure fit. Trust ZF Electronics Corp for reliable performance and durability in your electronic projects.

Product Highlights:

  • 5 current ratings
  • Choice of actuator styles
  • 3 terminal types (optional screw terminals available — consult factory)
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature 150°C and 200°C available on select models (consult factory)
  • Includes E13, E14, E29, E30 and G13 Series.

Search Keywords: E1400M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ZF Electronic Systems
Part No:
E14-00M
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
250
Package Type:
Box
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Thermoplastic Nylon/Button
Contact Rating @ Voltage:
1491.4 A
Maximum Movement Differential:
0.38 mm
Operating Force:
8.34 N
Termination Style:
Quick Connect,Faston
Dimension:
67.12 x 16.26 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 2,845

Ships today, if you order in

Minimum Order: 5

Factory Lead-Time 20 Weeks

Price (CAD)

Qty
Unit Price
5
$19.861
25
$17.994
50
$16.922
100
$16.599
250
$11.271
500
$9.586
1,000
$9.372
2,500 +
$9.326
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Accessories

00120023

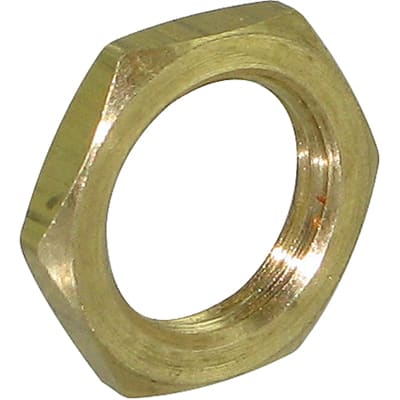

Accessory, Hardware, 3/8x32 Thread, Brass Hex Nut for E13-19 Series | ZF Electronics 00120 ...

120023

Brass Hex Nut for E13-19 Series - 3/8x32 Thread.

00120028

Switch Access Snap Action Switch Hex Nut

120028

Switch Access Snap Action Switch Hex Nut

Show 2 More
