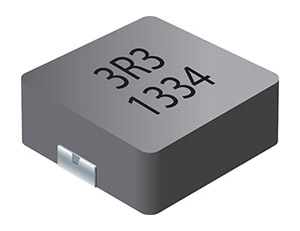

Bourns® SMD Power Inductors - SRP1265A Series

The SRP1265A series is a shielded SMD power inductor featuring an iron powder core with a high-saturation current and an inductance range from 0.15 to 47 µH.

  • Shielded construction
  • Carbonyl powder core
  • High-saturation current
  • Inductance range: 0.15 to 47 µH
  • AEC-Q200 compliant
View
Show products manufactured by Bourns
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

15 PRODUCT RESULTS FOR ""

Filter Results

15 Products

    SRP1265A-3R3M
    Data Sheet
    SRP1265A-3R3M Bourns
    Inductor Power - Shielded - Wirewound - 13.5 x 12.5 x 6.2mm - 3.3 µH - 100KHz - 18A - 6.8m Ohm.
    VIEW PRODUCT
    In Stock: 1500
    Ships Immediately
    On Order: 4000
    can ship 6/22/26
    500
    $0.765
    1,000
    $0.754
    2,500
    $0.711
    5,000
    $0.680
    7,500
    $0.679
    SRP1265A-5R6M
    Data Sheet
    SRP1265A-5R6M Bourns
    The SRP1265A-5R6M is an AEC-Q200 compliant, shielded power inductor with a nominal inductance of 5.6 µH.
    VIEW PRODUCT
    In Stock: 1000
    Ships Immediately
    On Order: 5000
    can ship 6/8/26
    500
    $0.793
    1,000
    $0.731
    2,500
    $0.686
    5,000
    $0.660
    7,500
    $0.657
    SRP1265A-220M
    Data Sheet
    SRP1265A-220M Bourns
    Inductor Power - Shielded - Wirewound - 13.5 x 12.5 x 6.2mm - 22 µH - 100KHz - 9A - 37m Ohm.
    VIEW PRODUCT
    In Stock: 7035
    Ships Immediately
    500
    $0.980
    1,000
    $0.902
    2,500
    $0.852
    5,000
    $0.815
    7,500
    $0.813
    SRP1265A-330M
    Data Sheet
    SRP1265A-330M Bourns
    Inductor Power Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Carbonyl Powder 8A 0.058Ohm DCR Automotive T/R
    VIEW PRODUCT
    In Stock: 2600
    Ships Immediately
    500
    $0.862
    1,000
    $0.814
    2,500
    $0.794
    5,000
    $0.774
    7,500
    $0.764
    SRP1265A-100M
    Data Sheet
    SRP1265A-100M Bourns
    Inductor Power - Shielded - Wirewound - 13.5 x 12.5 x 6.2mm - 22 µH - 100KHz - 9A - 37m Ohm.
    VIEW PRODUCT
    In Stock: 3549
    Ships Immediately
    500
    $0.771
    1,000
    $0.715
    2,500
    $0.682
    5,000
    $0.621
    7,500
    $0.619
    SRP1265A-1R5M
    Data Sheet
    SRP1265A-1R5M Bourns
    Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Carbonyl Powder 27A 3mOhm DCR Automotive T/R
    VIEW PRODUCT
    In Stock: 56
    Ships Immediately
    1
    $0.8459
    179
    $0.7690
    1,000
    $0.7617
    2,500
    $0.7249
    5,000
    $0.6934
    SRP1265A-150M
    Data Sheet
    SRP1265A-150M Bourns
    Inductor Power Shielded Wirewound 15uH 20% 100KHz 20Q-Factor Carbonyl Powder 9A 28mOhm DCR Automotive T/R
    VIEW PRODUCT
    In Stock: 1206
    Ships Immediately
    500
    $0.974
    1,000
    $0.902
    2,500
    $0.852
    5,000
    $0.815
    7,500
    $0.813
    SRP1265A-6R0M
    Data Sheet

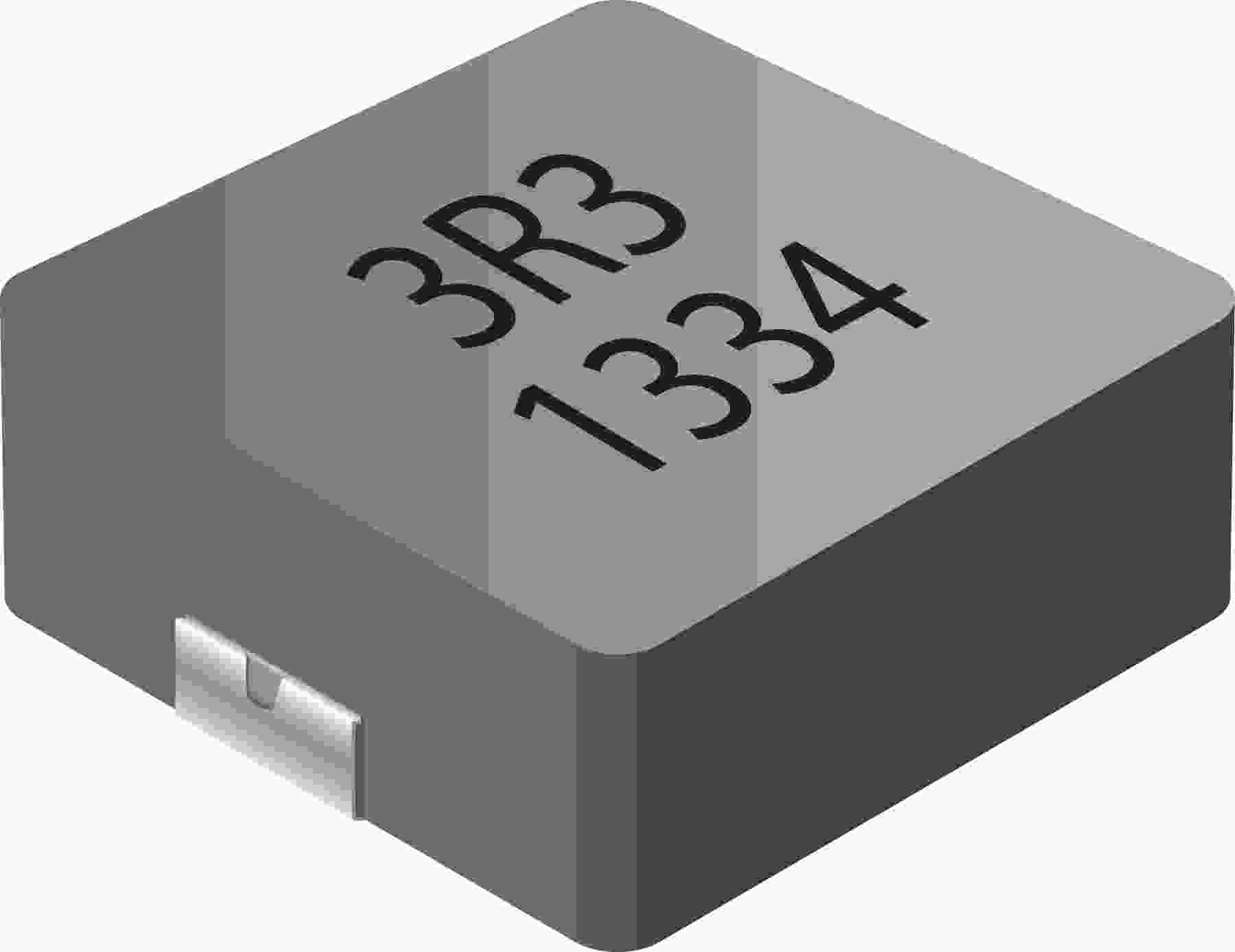

    SRP1265A-6R0M Bourns
    ROHS3Compliant Wirewound Active WRAPAROUND Fixed Inductor -40C~150C 14MHz 10mOhm Max 6muH
    VIEW PRODUCT
    16 Weeks
    500
    $0.767
    1,000
    $0.765
    2,500
    $0.716
    5,000
    $0.696
    7,500
    $0.695
    SRP1265A-470M
    Data Sheet
    SRP1265A-470M Bourns
    Inductor Power - Shielded - Wirewound - 13.5 x 12.5 x 6.2mm - 47 µH - 100KHz - 6.5A - 90m Ohm.
    VIEW PRODUCT
    In Stock: 2190
    Ships Immediately
    1
    $1.0050
    500
    $0.9136
    1,000
    $0.8745
    2,500
    $0.8446
    5,000
    $0.8240
    SRP1265A-6R8M
    Data Sheet
    SRP1265A-6R8M Bourns
    Inductor Power Shielded Wirewound 6.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 11.5mOhm DCR Automotive T/R
    VIEW PRODUCT
    In Stock: 500
    Ships Immediately
    500
    $0.624
    1,000
    $0.623
    2,500
    $0.604
    5,000
    $0.596
    7,500
    $0.594
