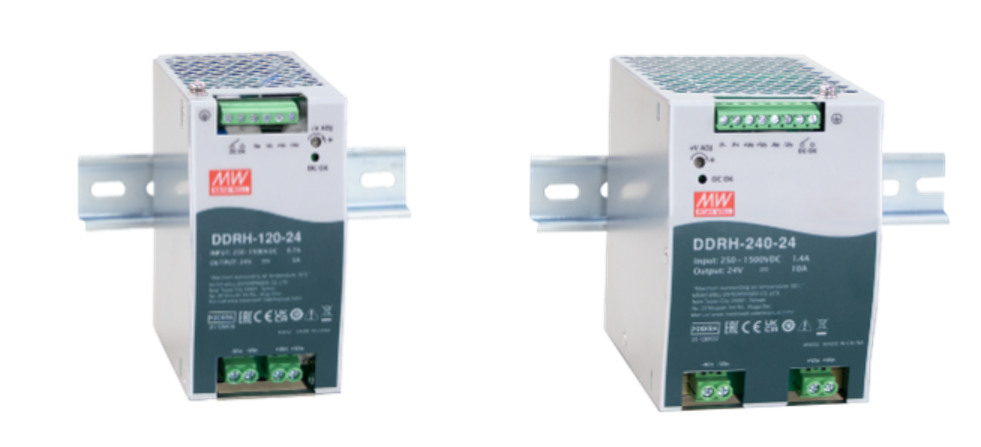

MEAN WELL 120W & 240W Ultra-Wide 250~1500Vdc Input DIN Rail Type DC-DC Converter

DDRH-120/240 series key features include: 250~1500Vdc ultra-wide input range, fanless design operational in -40～+80oC wide temperature range, 4KVac high isolation level, input/output complete protection features, superior EMC performance, high altitude 5000M operation, and compliance to the IEC/EN62109-1 PV safety.

  • 250~1500Vdc ultra-wide input voltage
  • 4KVac I/O isolation. Approvals: CB/DEKRA (IEC/EN62109-1), EAC, CE, UKCA
  • Free air convection, can operate between -40~+80oC (+50oC@full load without derating), suitable for various installation conditions
  • Fanless design, no noise. Excellent EMC performance, meet EN55032 Class A EMI performance without external components
  • Built-in potentiometer, can trim output (12~15V,24~29V,30~36V,48~58V). 3 years warranty
  • Protections: Input – Under voltage protection, reverse polarity (No damage); Output – Short circuit, overload, over voltage, over temperature
View
Show products manufactured by Mean Well
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

8 PRODUCT RESULTS FOR ""

Filter Results

8 Products

    DDRH-120-12
    Data Sheet
    DDRH-120-12 Mean Well
    DC-DC Converter - 120W - Output: 12VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 2
    Ships Immediately
    1
    $88.065
    5
    $82.568
    10
    $78.587
    20 +
    $75.386
    DDRH-120-24
    Data Sheet
    DDRH-120-24 Mean Well
    DC-DC Converter - 120W - Output: 24VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 2
    Ships Immediately
    1
    $88.065
    5
    $78.969
    10
    $78.571
    20 +
    $76.336
    DDRH-120-32
    Data Sheet
    DDRH-120-32 Mean Well
    DC-DC Converter - 120W - Output: 32VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 2
    Ships Immediately
    1
    $88.509
    5
    $84.222
    10
    $80.546
    20 +
    $78.249
    DDRH-120-48
    Data Sheet
    DDRH-120-48 Mean Well
    DC-DC Converter - 120W - Output: 48VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 2
    Ships Immediately
    1
    $88.509
    5
    $84.222
    10
    $80.546
    20 +
    $78.249
    DDRH-240-12
    Data Sheet
    DDRH-240-12 Mean Well
    DC-DC Converter - 240W - Output: 12VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 1
    Ships Immediately
    1
    $126.471
    5
    $118.753
    10
    $112.949
    20 +
    $109.656
    DDRH-240-24
    Data Sheet
    DDRH-240-24 Mean Well
    DC-DC Converter - 240W - Output: 24VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 4
    Ships Immediately
    1
    $127.098
    5
    $121.126
    10
    $115.766
    20 +
    $112.397
    DDRH-240-32
    Data Sheet
    DDRH-240-32 Mean Well
    DC-DC Converter - 240W - Output: 32VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    In Stock: 2
    Ships Immediately
    1
    $126.471
    5
    $118.753
    10
    $112.949
    20 +
    $109.656
    DDRH-240-48
    Data Sheet
    DDRH-240-48 Mean Well
    DC-DC Converter - 240W - Output: 48VDC - Input: 250 to 1500VDC - DIN Rail
    VIEW PRODUCT
    16 Weeks
    1
    $127.098
    5
    $121.126
    10
    $115.766
    20 +
    $112.397
