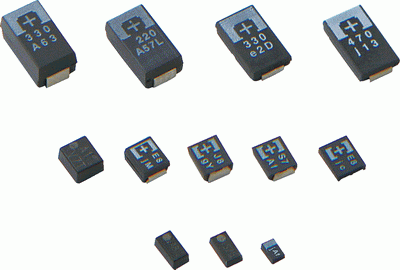

Panasonic POSCAP™ Polymer Tantalum Capacitors

POSCAP™ Polymer Tantalum Capacitors are SMD capacitors that utilize a sintered tantalum anode and a proprietary high conductivity polymer cathode. Ideal for digital high frequency applications because of their stable capacitance at high frequencies/temps, these capacitors offer high capacitance density in a D or B case size.

  • Voltage Range: 2V to 35V
  • Large Capacitance: 1,500μF to 3.9μF
  • Low ESR: as low as 5mΩ
  • High Ripple Current Rating: up to 6.1Arms
  • Wide Operating Temperature Range: -55°C to +125°C
  • Endurance: up to 2,000h
View
Show products manufactured by Passive & Specialty Components by Panasonic
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

338 PRODUCT RESULTS FOR ""

Filter Results

338 Products

    35TQC10MYF
    Data Sheet
    35TQC10MYF Panasonic
    Conductive Polymer Tantalum Solid Capacitor - 10uF ±20% - 35V - SMT - 3.5 x 2.8mm - 105°C
    VIEW PRODUCT
    In Stock: 2280
    Ships Immediately
    25
    $1.086
    250
    $0.971
    500
    $0.949
    1,000
    $0.929
    3,000
    $0.909
    35TQC10MYFB
    Data Sheet
    35TQC10MYFB Panasonic
    The 35TQC10MYFB is a surface-mount, conductive polymer tantalum solid capacitor with a rated voltage of 35V and a ...
    VIEW PRODUCT
    On Order: 6000
    can ship 5/11/26
    500
    $0.647
    2,000
    $0.634
    4,000
    $0.627
    6,000
    $0.620
    8,000
    $0.618
    35TQC15MYF
    Data Sheet
    35TQC15MYF Panasonic
    Conductive Polymer Tantalum Solid Capacitor - 15uF ±20% - 35V - SMT - 3.5 x 2.8mm - 105°C
    VIEW PRODUCT
    In Stock: 5000
    Ships Immediately
    25
    $1.43
    250
    $1.22
    500
    $1.16
    1,000
    $1.12
    3,000
    $1.08
    35TQC3R9MYF
    Data Sheet
    35TQC3R9MYF Panasonic
    Conductive Polymer Tantalum Solid Capacitor - 3.9uF ±20% - 35V - SMT - 3.5 x 2.8mm - 105°C
    VIEW PRODUCT
    Discontinued & Replaced

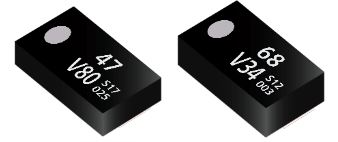

    35TQS47MEU
    Data Sheet
    35TQS47MEU Panasonic
    Conductive Polymer Tantalum Solid Capacitor, 47 µF, -55 to 105 ¡C
    VIEW PRODUCT
    In Stock: 55
    Ships Immediately
    25
    $1.431
    250
    $1.124
    500
    $1.107
    1,000
    $1.096
    4,000
    $1.086
    10TVE150ML
    Data Sheet
    10TVE150ML Panasonic
    POSCAP, TV Series, 10VDC, 150uF, 25m , Chip, 7.3x4.3x2.8
    VIEW PRODUCT
    22 Weeks
    625
    $5.18
    1,250
    $2.74
    1,875
    $1.93
    2,500 +
    $1.90
    10TVE68M
    Data Sheet
    10TVE68M Panasonic
    POSCAP, TV Series, 10VDC, 68uF, 25m , Chip, 7.3x4.3x2.8
    VIEW PRODUCT
    22 Weeks
    750
    $4.14
    1,500
    $2.19
    2,250
    $1.55
    3,000 +
    $1.51
    6TVE150M
    Data Sheet
    6TVE150M Panasonic
    POSCAP, TV Series, 6.3VDC, 150uF, 25m , Chip, 7.3x4.3x2.8
    VIEW PRODUCT
    22 Weeks
    750
    $3.30
    1,500
    $1.75
    2,250
    $1.24
    3,000 +
    $1.21
