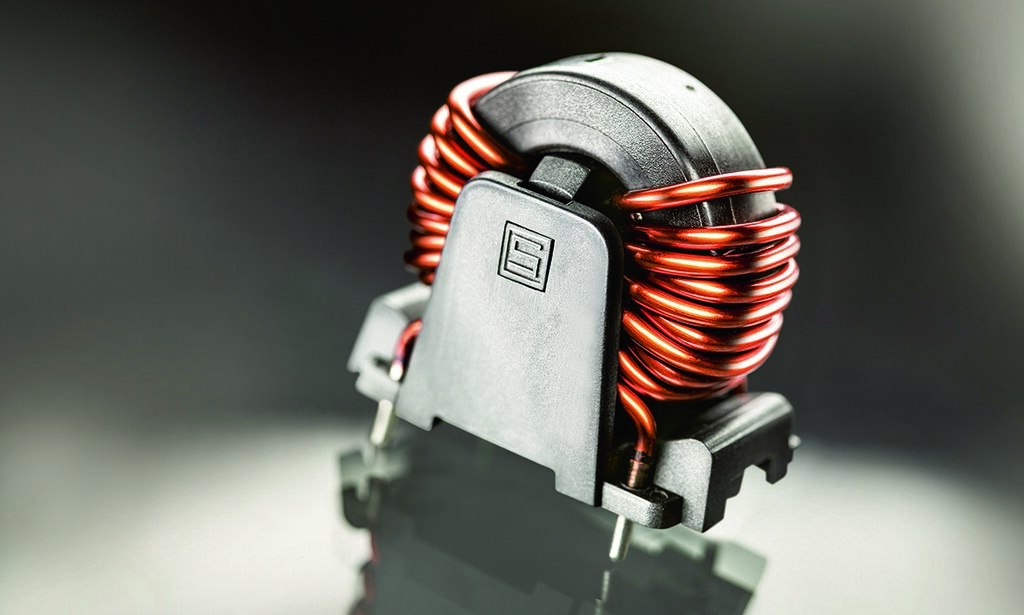

SCHURTER DKIV-1 Series - Vertical Mount, Common Mode Chokes - High Current THT Choke, Single Phase

The DKIV-1 Series are compact high current chokes with choice of performance using nanocrystalline or ferrite ring cores. The series features an open frame design for optimized heat dissipation, and is particularly suitable for applications with frequency converters, charge stations, USP-systems, and switching power supplies.

  • Rated voltage: IEC, UL: 300 VAC, CSA: 250 VAC (400Hz max) , 450 VDC
  • Rated Current: 10 - 50 A @ Ta 40 °C
  • Allowable Operation Temperature: -40 °C to 100 °C
  • Rated inductance: 0.15 - 8.2 mH, Tol. -30% +50%
  • Nanocrystalline core options for higher performance
  • Approvals and Compliances: c-UR-us, ENEC , CE, UKCA
View
Show products manufactured by Schurter
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

8 PRODUCT RESULTS FOR ""

Filter Results

8 Products

    3-127-620
    Data Sheet
    3-127-620 Schurter
    DKIV-1 COMP. CHOKE 2PH 10A 8.2mH
    VIEW PRODUCT
    MANUFACTURER STOCK 840
    can ship 12/1/25
    1
    $18.602
    10
    $16.593
    40
    $16.099
    80
    $15.409
    280
    $14.389
    3-127-621
    Data Sheet
    3-127-621 Schurter
    DKIV-1 COMP. CHOKE 2PH 12A 7.2mH
    VIEW PRODUCT
    MANUFACTURER STOCK 80
    can ship 12/1/25
    1
    $19.683
    10
    $17.562
    40
    $17.036
    80
    $16.305
    280
    $15.223
    3-127-622
    Data Sheet
    3-127-622 Schurter
    DKIV-1 COMP. CHOKE 2PH 16A 7.3mH
    VIEW PRODUCT
    MANUFACTURER STOCK 80
    can ship 12/1/25
    1
    $20.765
    10
    $18.530
    40
    $17.974
    80
    $17.201
    280
    $16.058
    3-127-623
    Data Sheet
    3-127-623 Schurter
    DKIV-1 COMP. CHOKE 2PH 20A 3.7mH
    VIEW PRODUCT
    MANUFACTURER STOCK 120
    can ship 12/1/25
    1
    $22.063
    10
    $19.683
    40
    $19.096
    80
    $18.283
    280
    $17.057
    3-127-624
    Data Sheet
    3-127-624 Schurter
    DKIV-1 COMP. CHOKE 2PH 25A 1.8mH
    VIEW PRODUCT
    MANUFACTURER STOCK 80
    can ship 12/1/25
    10
    $26.337
    20
    $19.755
    30
    $18.437
    40 +
    $18.066
    3-127-625
    Data Sheet
    3-127-625 Schurter
    DKIV-1 COMP. CHOKE 2PH 32A 7.2mH
    VIEW PRODUCT
    MANUFACTURER STOCK 80
    can ship 12/1/25
    1
    $23.793
    20
    $20.590
    40
    $19.992
    60
    $19.694
    100
    $18.901
    3-127-626
    Data Sheet
    3-127-626 Schurter
    DKIV-1 COMP. CHOKE 2PH 40A 4.3mH
    VIEW PRODUCT
    26 Weeks
    1
    $24.442
    20
    $21.156
    40
    $20.538
    60
    $20.240
    100
    $19.416
    3-127-627
    Data Sheet
    3-127-627 Schurter
    DKIV-1 COMP. CHOKE 2PH 50A 1.4mH
    VIEW PRODUCT
    MANUFACTURER STOCK 60
    can ship 12/1/25
    1
    $27.038
    20
    $23.402
    40
    $22.722
    60
    $22.382
    100
    $21.476
