SCHURTER's SHF and SHT Fuse Series and FUS Fuseholder Series

SCHURTER’s high performance SHF and SHT fuses provide higher voltage, overcurrent, and short circuit protection in a universally accepted compact package size 6.3x32 mm. The SHF and SHT fuses offer 16 rated currents from 0.5A to 32A up to 500 VAC/VDC.

  • Quick-Acting…Primary protection up to 500 VAC/VDC. Breaking capacity up to 50kA VAC and 20kA VDC.
  • Time-Lag…Primary protection up to 500 VAC and 400 VDC. Breaking capacity up to 10kA VAC and 20kA VDC.
  • Applications for Fuses: 3-phase systems, Photovoltaic inverter to grid DC to AC or DC to DC, HVAC, Lighting systems, server farms and more.
  • The FUS series shock-safe, snap-in panel mount fuseholder is designed for robust applications and is IP67 weatherproof rated. The FUS is rated 16 A @ 500 VAC (IEC) and up to 32 A @ 600 VAC /VDC (UL/CSA). The fuseholder accepts 5x20 mm or 6.3 x 32 mm fuses.
  • Applications: Equipment exposed to outdoor weather, or oil and chemical, marine, medical, food processing, laboratory and mining environments.
View
Show products manufactured by Schurter
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support Datasheet
Product Guides

93 PRODUCT RESULTS FOR ""

Filter Results

93 Products

    8020.5026.G
    Data Sheet
    8020.5026.G Schurter
    SHT 6.3x32, 32 A, 400 VAC, Time-Lag T, Non-Resettable Fuse - 1,000 pc quanitity
    VIEW PRODUCT
    In Stock: 870
    Ships Immediately
    25
    $1.273
    250
    $1.189
    500
    $1.166
    1,000
    $1.140
    3,000
    $1.103
    8020.5068
    Data Sheet
    8020.5068 Schurter
    SHF 6.3x32, 1 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    20 Weeks
    30
    $1.027
    250
    $0.862
    1,000
    $0.798
    2,500
    $0.752
    5,000
    $0.732
    8020.5068.G
    Data Sheet
    8020.5068.G Schurter
    SHF 6.3x32, 1 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    In Stock: 1800
    Ships Immediately
    MANUFACTURER STOCK 8000
    can ship 12/1/25
    50
    $1.050
    500
    $0.781
    1,000
    $0.703
    3,000
    $0.690
    5,000
    $0.636
    8020.5068.PT
    Data Sheet
    8020.5068.PT Schurter
    SHT 6.3x32 Pigtail, 1 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    20 Weeks
    100
    $1.255
    300
    $1.020
    1,000
    $0.974
    2,500
    $0.895
    5,000
    $0.880
    8020.5069
    Data Sheet
    8020.5069 Schurter
    SHF 6.3x32, 1.25 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    In Stock: 150
    Ships Immediately
    MANUFACTURER STOCK 8960
    can ship 12/1/25
    30
    $2.068
    250
    $1.133
    1,000
    $0.941
    2,500
    $0.892
    5,000
    $0.770
    8020.5069.G
    Data Sheet
    8020.5069.G Schurter
    SHF 6.3x32, 1.25 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    20 Weeks
    50
    $0.951
    500
    $0.773
    1,000
    $0.738
    3,000
    $0.697
    5,000
    $0.678
    8020.5069.PT
    Data Sheet
    8020.5069.PT Schurter
    SHT 6.3x32 Pigtail, 1.25 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    20 Weeks
    100
    $1.255
    300
    $1.020
    1,000
    $0.974
    2,500
    $0.895
    5,000
    $0.880
    8020.5070
    Data Sheet
    8020.5070 Schurter
    SHF 6.3x32, 1.6 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse
    VIEW PRODUCT
    MANUFACTURER STOCK 2380
    can ship 12/1/25
    30
    $1.027
    250
    $0.862
    1,000
    $0.798
    2,500
    $0.752
    5,000
    $0.732
    8020.5070.G
    Data Sheet
    8020.5070.G Schurter
    SHF 6.3x32, 1.6 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse - 1,000 pc quantity
    VIEW PRODUCT
    20 Weeks
    50
    $0.951
    500
    $0.773
    1,000
    $0.738
    3,000
    $0.697
    5,000
    $0.678
    8020.5070.PT
    Data Sheet
    8020.5070.PT Schurter

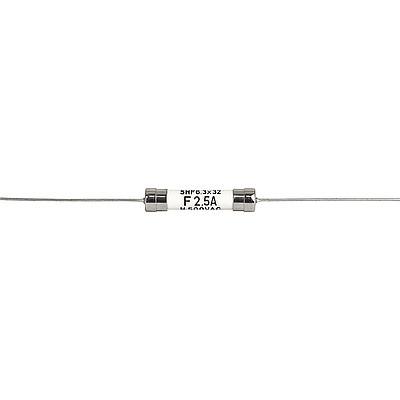

    SHT 6.3x32 Pigtail, 1.6 A, 500 VAC, Quick-Acting F, Non-Resettable Fuse, 6.3x32
    VIEW PRODUCT
    20 Weeks
    100
    $1.255
    300
    $1.020
    1,000
    $0.974
    2,500
    $0.895
    5,000
    $0.880
