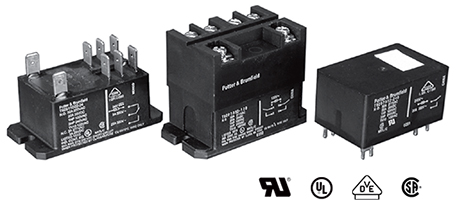

TE Connectivity's P&B T92 Series Two-pole 30A PCB or Panel Mount Relay

TE Connectivity's T92 general purpose high power PCB relays series are a two-pole version of the T9 series. With 40A, 2 form A (NO) and 2 form C (CO) switching capability, it is designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA. Various mounting, termination and enclosure options permit design flexibility.

  • 40A, 2 form A (NO) and 2 form C (CO) switching capability
  • Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA
  • Meets requirements of UL 508 and UL 873 spacings
  • Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contact
  • Meets requirements of UL Class F construction
  • UL approved for 600VAC switching (1.5HP)
View
Show products manufactured by TE Connectivity / P&B Brand
Authorized Distributor
Information
Product Range Live Chat Tech Support Datasheet
Product Guides

78 PRODUCT RESULTS FOR ""

Filter Results

78 Products

    T92P11A12-120
    Data Sheet
    T92P11A12-120 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 120VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Pla ...
    VIEW PRODUCT
    In Stock: 3
    Ships Immediately
    1
    $64.40
    10
    $64.23
    25
    $64.08
    60
    $63.91
    120
    $33.84
    T92P11A22-12
    Data Sheet
    T92P11A22-12 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 12VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Plas ...
    VIEW PRODUCT
    In Stock: 243
    Ships Immediately
    1
    $24.09
    5
    $23.27
    10
    $22.71
    30
    $22.04
    60
    $21.44
    T92P11A22-120
    Data Sheet
    T92P11A22-120 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 120VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Pla ...
    VIEW PRODUCT
    In Stock: 1191
    Ships Immediately
    1
    $32.36
    5
    $20.02
    10
    $19.66
    30
    $19.09
    60
    $18.89
    T92P11A22-208
    Data Sheet
    T92P11A22-208 TE Connectivity / P&B Brand
    Power Relay 30A DPDT(68.58mm 34.54mm 37.97mm) Flange
    VIEW PRODUCT
    On Order: 120
    can ship 5/13/26
    1
    $41.07
    5
    $28.70
    10
    $28.42
    30
    $26.00
    60
    $24.93
    T92P11A22-24
    Data Sheet
    T92P11A22-24 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 24VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Plas ...
    VIEW PRODUCT
    In Stock: 20
    Ships Immediately
    On Order: 2640
    can ship 7/20/26
    1
    $35.68
    5
    $23.55
    10
    $23.31
    30
    $22.63
    60
    $22.40
    T92P11A22-240
    Data Sheet
    T92P11A22-240 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 240VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Pla ...
    VIEW PRODUCT
    In Stock: 1560
    Ships Immediately
    On Order: 600
    can ship 6/1/26
    1
    $29.74
    5
    $17.67
    10
    $17.38
    30
    $16.77
    60
    $16.69
    T92P11A22-277
    Data Sheet
    T92P11A22-277 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 277VAC Coil - 30A Contact Rating - 600VAC Switching - Dust Protected Pla ...
    VIEW PRODUCT
    In Stock: 264
    Ships Immediately
    1
    $49.10
    5
    $34.66
    10
    $31.92
    30
    $28.95
    60
    $27.33
    T92P11A42-120
    Data Sheet

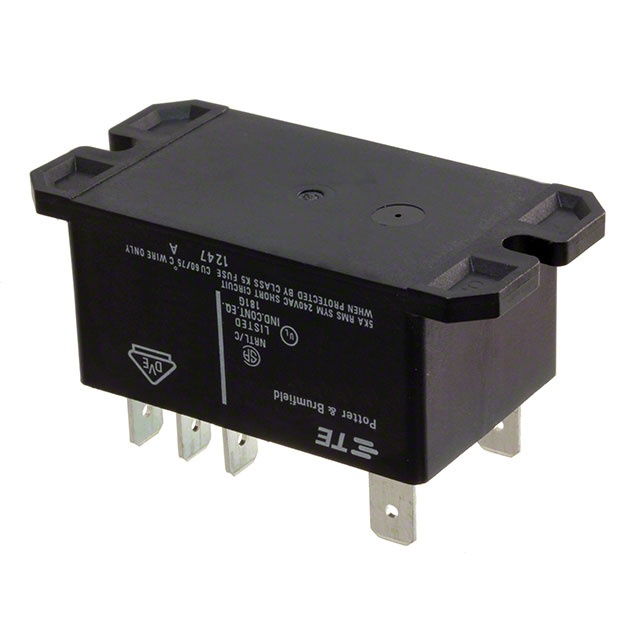

    T92P11A42-120 TE Connectivity / P&B Brand
    High Power PCB Relay - 2 form C (2 CO) - 120VAC Coil - 30A Contact Rating -600VAC Switching -Dust Protected Plast ...
    VIEW PRODUCT
    In Stock: 13
    Ships Immediately
    1
    $46.60
    10
    $30.76
    25
    $29.80
    60
    $28.56
    120
    $28.28
    T92P11D12-12
    Data Sheet
    T92P11D12-12 TE Connectivity / P&B Brand
    Power Relay 12VDC 30A DPDT(52.32mm 34.54mm 30.73mm) THT
    VIEW PRODUCT
    25 Weeks
    30
    $39.47
    60
    $24.29
    90
    $19.23
    120 +
    $18.85
    T92P11D22-110
    Data Sheet
    T92P11D22-110 TE Connectivity / P&B Brand
    Power Relay 110VDC 30(NO)/3(NC)A DPDT(68.58x34.54x37.97)mm Flange
    VIEW PRODUCT
    In Stock: 239
    Ships Immediately
    1
    $23.91
    5
    $23.08
    10
    $22.54
    30
    $21.87
    60
    $21.28
