TRUMETER Advanced Panel Meter Range - For Ultimate Control and Monitoring

The most visible, easy to use, programmable panel meter on the market. The APM provides accurate measurement with an immediate visual indication of critical parameters. Designed to provide a more effective way of monitoring and displaying data, each model features a multitude of options that can be set using the APM software.

  • 40 segment bar graph display incorporating large 4-digit reading, starburst display area for annunciators, messages and alarm information, and color-changing backlight alerts.
  • User-configurable scale and range, backlight color, 10 independent alarm set-points, 20-point non-linearization scaling, digital output delays and more.
  • Available in positive and negative LCD options for indoor or outdoor environments.
  • Wide range of models for various applications including volt, amp, frequency, process temperature, 3-phase power, and rate meters.
  • NEMA 4 & 12 with IP65 rated with UL certification
  • Digital and 4-20mA analog outputs plus Modbus© on selected models
View
Show products manufactured by Trumeter Company
Authorized Distributor
Visit Website
Information
Product Range Live Chat Tech Support
Product Guides

22 PRODUCT RESULTS FOR ""

Filter Results

22 Products

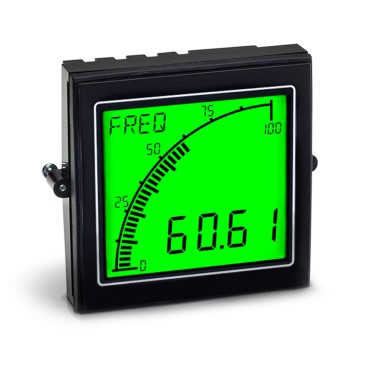

    APM-FREQ-APO
    Data Sheet
    APM-FREQ-APO Trumeter Company
    Panel Meter - Digital - User-Programmable Frequency Meter - 0-400 Hz - 4-Digit & Graph - 12-24V - Positive LCD - ...
    VIEW PRODUCT
    3 Weeks
    1
    $203.755
    5
    $188.549
    10
    $180.479
    15
    $173.052
    25
    $170.465
    APM-PROC-ANO
    Data Sheet
    APM-PROC-ANO Trumeter Company
    Panel Meter - Digital - User-Programmable Process Meter - 0-10 V - 0-50 mA Inputs - 4-Digit & Graph - 12-24VAC/DC ...
    VIEW PRODUCT
    In Stock: 7
    Ships Immediately
    1
    $283.184
    5
    $278.758
    10
    $257.412
    15
    $256.126
    25
    $241.088
    APM-CT-ANO
    Data Sheet
    APM-CT-ANO Trumeter Company
    Panel Meter - Digital - User-Programmable Ammeter - 0-10,000A AC - w/XFMR - 4-Digit & graph - 12-24V - Negative L ...
    VIEW PRODUCT
    In Stock: 5
    Ships Immediately
    1
    $281.866
    5
    $277.472
    10
    $230.660
    15
    $229.511
    25
    $215.882
    APM-M2-ANO
    Data Sheet
    APM-M2-ANO Trumeter Company
    Panel Meter - Digital - User-Programmable Panel Meter - V/A/Freq - 4-Digit & Graph - 100-240VAC - Negative LCD - ...
    VIEW PRODUCT
    3 Weeks
    1
    $229.221
    5
    $212.116
    10
    $203.036
    15
    $194.689
    25
    $191.765

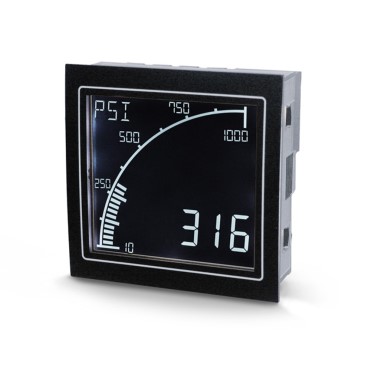

    APM-RATE-ANO
    Data Sheet
    APM-RATE-ANO Trumeter Company
    Panel Meter - Digital - User-Programmable Rate Meter - RPM,Hz,Ft/Min - 0-60 Khz - 4-Digit & Graph - 12-24VAC/DC - ...
    VIEW PRODUCT
    3 Weeks
    1
    $208.012
    5
    $192.485
    10
    $184.230
    15
    $176.666
    25
    $174.017

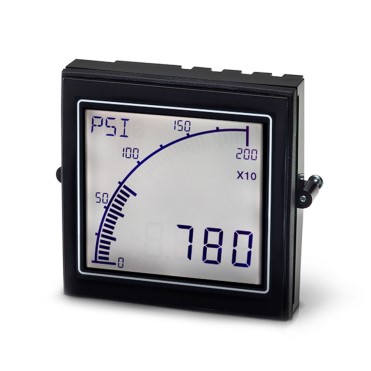

    APM-RATE-APO
    Data Sheet
    APM-RATE-APO Trumeter Company
    Panel Meter - Digital - User-Programmable Rate Meter - RPM,Hz,Ft/Min - 0-60 Khz - 4-Digit & Graph - 12-24VAC/DC - ...
    VIEW PRODUCT
    3 Weeks
    1
    $208.012
    5
    $192.485
    10
    $184.230
    15
    $176.666
    25
    $174.017
    APM-SHUNT-ANO
    Data Sheet
    APM-SHUNT-ANO Trumeter Company
    Panel Meter - Digital - User-Programmable Ammeter - 0-1 VDC w/shunt - 4-Digit & graph - 12-24V - Negative LCD - 7 ...
    VIEW PRODUCT
    In Stock: 4
    Ships Immediately
    1
    $294.301
    5
    $289.707
    10
    $257.412
    15
    $256.126
    25
    $241.088
    APM-MAX-M21-PU-4R
    Data Sheet
    APM-MAX-M21-PU-4R Trumeter Company
    Panel Meter - Digital - User-Programmable Panel Meter - V/A/Freq/W/VA/PF - 4-Digit & Graph - 100-240VAC - Positiv ...
    VIEW PRODUCT
    3 Weeks
    1
    $466.573
    3
    $454.889
    5
    $448.074
    10 +
    $441.352
    APM-MAX-M23-PU-4R
    Data Sheet
    APM-MAX-M23-PU-4R Trumeter Company
    Panel Meter - Digital - User-Programmable Panel Meter - Process - Current - 0-10 VDC - 0-5 A - 4-Digit & Graph - ...
    VIEW PRODUCT
    In Stock: 1
    Ships Immediately
    1
    $436.528
    3
    $434.338
    5
    $432.179
    10 +
    $380.100

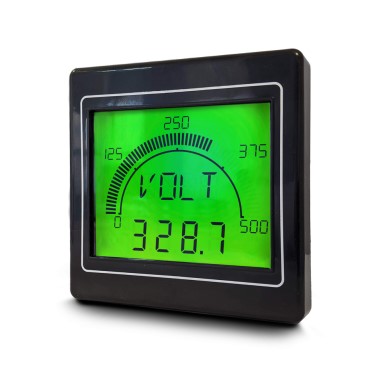

    APM-MAX-M21-PU-4B
    Data Sheet
    APM-MAX-M21-PU-4B Trumeter Company
    Panel Meter - Digital - User-Programmable Panel Meter - V/A/Freq/W/VA/PF - 4-Digit & Graph - 100-240VAC - Positiv ...
    VIEW PRODUCT
    3 Weeks
    1
    $528.238
    3
    $513.552
    5
    $505.850
    10 +
    $498.270
