ST202M-K8 by abb

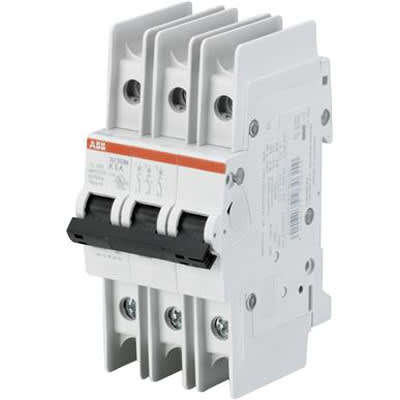

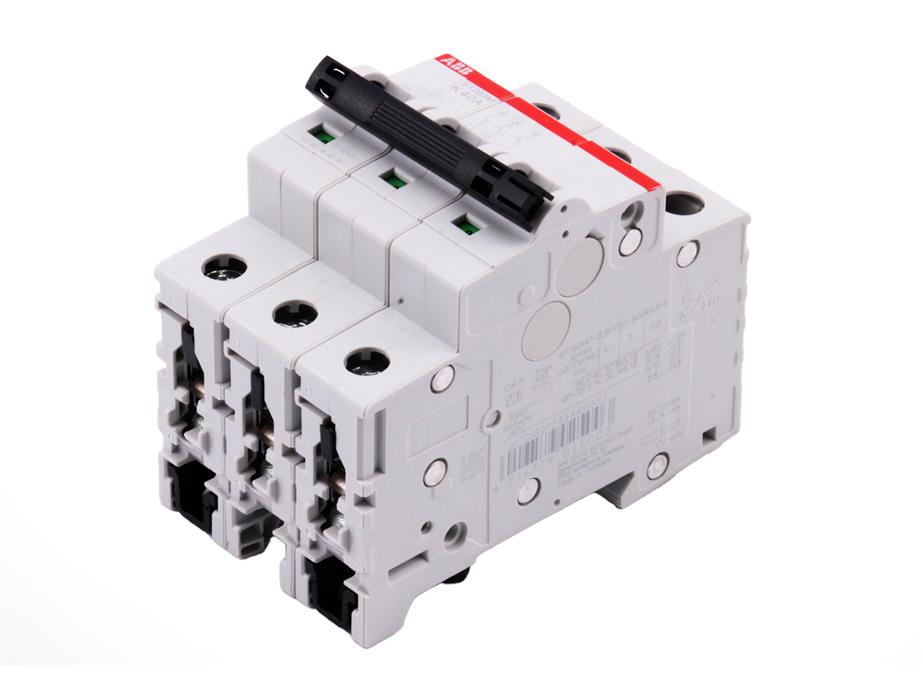

Image is representational - see manufacturer specifications
ABB Authorized Distributor

ST202M-K8

Miniature Circuit Breaker ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

ST202M-K8 is a 2-pole miniature circuit breaker from the ST200M series featuring K-characteristic tripping designed for industrial circuit protection. It offers a rated current of 8A with a rated ultimate short-circuit breaking capacity (Icu) of 15 kA at 400 V AC and 125 V DC, and a rated service short-circuit breaking capacity (Ics) of 11.2 kA at 400 V AC. The device features double clamp terminals and complies with CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 standards. With compact dimensions of 35 mm width, 69 mm depth, and 88 mm height, and a net weight of 0.23 kg, it is suitable for DIN rail mounting in modular installations. This MCB is ideal for protecting circuits in industrial environments where high inrush currents are expected.

Search Keywords: ST202MK8

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ABB
Part No:
ST202M-K8
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Miniature2867
Voltage Rating:
2772868VAC,1252868VDC
Number of Poles:
22860
Current Rating:
8 A
Terminal Design:
Screw2865
Operating Temperature:
N/A
Mounting:
DIN Rail2859

IN STOCK: 22

Ships today, if you order in

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$115.14
5
$113.26
10
$107.07
20
$104.25
50
$95.80
100 +
$90.17
