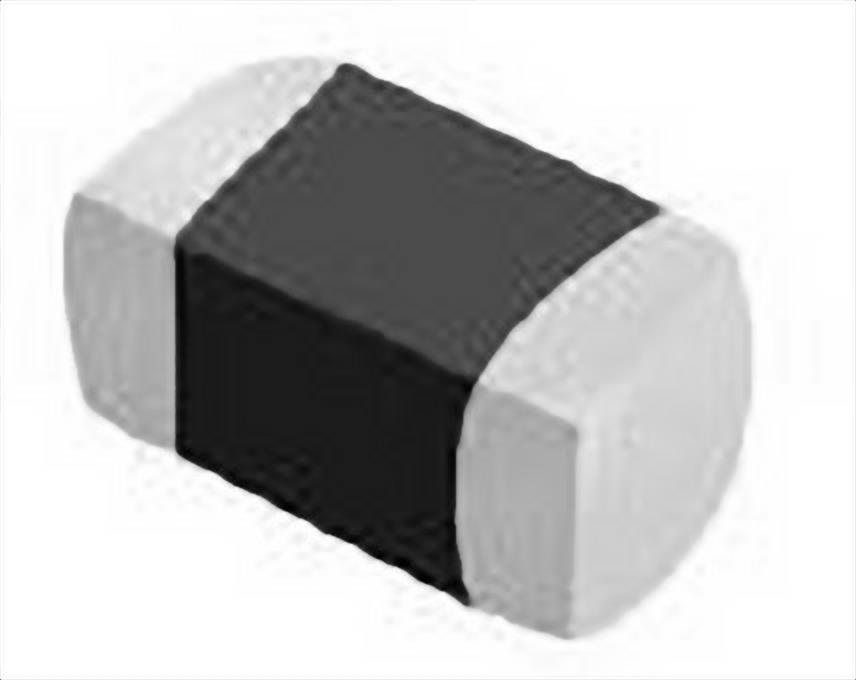

ASMPH-0603-1R0M-T by abracon
Image is representational - see mfr. specs

ASMPH-0603-1R0M-T

Abracon

Power Inductor - SMD 0603 - 1 (+/-) 20% uH - DCR 0.2 ohms - SRF 125 MHz - 800A Max - 0603 SMD ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ASMPH-0603-1R0M-T is an SMD multilayer chip power inductor featuring a compact 1.6 × 0.8 × 0.8 mm form factor and 1.0 µH inductance with ±20% tolerance. The inductor exhibits a typical DC resistance (DCR) of 0.20 O (maximum 0.25 O), a self-resonant frequency (SRF) of 125 MHz minimum, and supports a temperature rise current of 1000 mA maximum with a typical saturation current of 800 mA. Constructed using low-loss ferrite material with a monolithic structure and magnetically shielded design, it provides high DC bias current capability through trench technology while eliminating cross-coupling effects. This component is ideal for switching mode regulators in smartphones and cameras, buck converters for RF modules and audio codecs, and boost converters for flash drivers, offering excellent solderability and heat resistance for space-limited board applications.

Search Keywords: ASMPH06031R0MT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Abracon
Part No:
ASMPH-0603-1R0M-T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
CN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
4000
Package Type:
REEL

IN STOCK: 31,305

Can Ship immediately

Minimum Order Quantity: 4000

Multiple: 4000

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
4,000
$0.1004
8,000
$0.0965
12,000
$0.0929
28,000
$0.0920
52,000
$0.0915
100,000
$0.0892
152,000 +
$0.0887
Reel Package
Log in for special pricing Click for Quote Price Match Request
