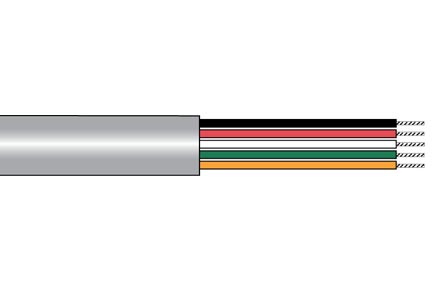

Image is representational - see mfr. specs

1175C-SL005

Name: 1175C-SL005
Brand: Alpha Wire
SKU: 10116303
Price: 170.16 USD
Availability: InStock

Alpha Wire

Multi-Conductor Cable Polyvinyl Chloride 5 Conductors 22AWG 5.35mm 300VAC - Slate - 30.48m (100ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 1175C-SL005 is a 5-conductor control cable featuring 22 AWG stranded tinned copper conductors (7/30 strand count) with individual 0.010" nominal PVC insulation and a 0.032" nominal PVC jacket. The five conductors are cabled together with a minimum twist rate of 6.0 twists per foot and are color-coded per Alpha Wire Color Code D (black, red, white, green, and orange). This cable is rated for 300 V RMS and operates reliably from -20°C to +80°C, with a maximum pull tension of 27 lbs and a minimum bend radius of 10 times the cable diameter. It meets UL AWM/STYLE 2576 (80°C/150 V RMS), UL CM (75°C), UL VW-1, CSA CMG (60°C), and CSA FT4 standards, and is RoHS 2 and RoHS 3 compliant. The cable is commonly used in control circuits, instrumentation, and low-voltage signal applications where multiple conductors and flame-retardant properties are required.

Product Highlights:

Potential Applications:

Search Keywords: 1175CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

1175C-SL005

Alias/AKA:

1175C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
