1892C-SL005

Name: 1892C-SL005
Brand: Alpha Wire
SKU: 10119001
Price: 2751.94 USD
Availability: InStock

Slate - 30.48m (100ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

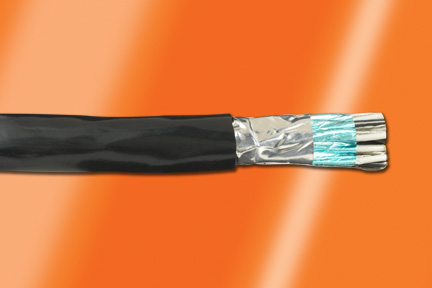

The 1892C-SL005 is a two-conductor control cable featuring 12 AWG stranded tinned copper conductors (65/30 strand configuration) with individual PVC insulation and an overall slate-colored PVC jacket. The cable is constructed with 2 conductors twisted at a minimum of 3.0 twists per foot, with individual conductor insulation of 0.020" wall thickness and an overall jacket thickness of 0.023". It is rated for 300V RMS operation and meets UL/CUL standards for FT1 fire rating, AWM I/II A/B 80°C, and is RoHS-compliant. The cable exhibits a characteristic impedance of 53O, capacitance of 39 pF/ft at 1 kHz, and a conductor DC resistance of 1.76O/1000ft at 20°C. This cable is ideal for low-voltage control, instrumentation, and general-purpose wiring applications requiring reliable performance across a temperature range of -20°C to 80°C.

Product Highlights:

Potential Applications:

Search Keywords: 1892CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

1892C-SL005

Alias/AKA:

1892C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
