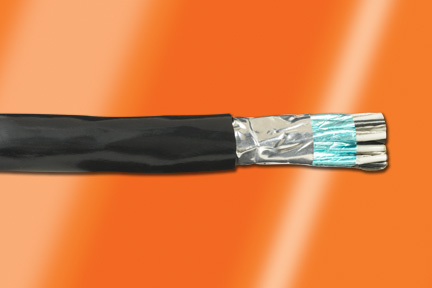

Image is representational - see mfr. specs

1896/12C-SL005

Name: 1896/12C-SL005
Brand: Alpha Wire
SKU: 10119020
Price: 444.13 USD
Availability: InStock

Alpha Wire

Multi-Conductor Cable 12 Conductors 20AWG 8.9mm 300VAC - Gray - 30.48m (100ft)/Spool ...

Datasheet

RoHS Compliant

Reel Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 1896/12C-SL005 is a 12-conductor communication cable featuring 20 AWG (7/28) tinned copper conductors with individual PVC insulation and an overall PVC jacket. Each conductor has a nominal insulation wall thickness of 0.016 inches, with a conductor diameter of 0.038 inches and an overall cable diameter of 0.331 inches (0.347 inches maximum). The 12 conductors are cabled together with a minimum twist rate of 2.8 twists per foot and are color-coded according to Alpha Wire Color Code D for easy identification. The cable is rated for 300V RMS operation and operates reliably over a temperature range of -20°C to +80°C, with electrical properties including a nominal capacitance of 30 pF/ft at 1 kHz and a conductor DC resistance of 10.2 O/1000 ft at 20°C. This cable is ideal for control, instrumentation, and low-voltage signal transmission applications where multiple conductors and reliable performance are required.

Product Highlights:

Potential Applications:

Search Keywords: 189612CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

1896/12C-SL005

Alias/AKA:

1896/12C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
