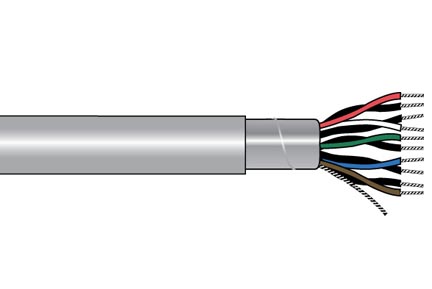

Image is representational - see mfr. specs

2211C-SL002

Alpha Wire

Slate - 152.4m (500ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 2211C-SL002 is a single-pair shielded twisted-pair cable designed for low-voltage signal transmission and control applications. It features 22 AWG tinned copper conductors with 0.010" PVC insulation, twisted at 8.0 twists per foot minimum, and protected by an aluminum/mylar tape shield with 25% overlap and a 22 AWG drain wire. The cable is rated for 150V RMS operation over a temperature range of -20°C to +80°C, with a characteristic impedance of 41O and low conductor DC resistance of 16.2O/1000ft at 20°C. The outer PVC jacket is 0.032" wall thickness in slate color, providing durability and environmental protection. This cable is ideal for instrumentation, data acquisition, audio signal routing, and industrial control systems where noise immunity and reliable signal integrity are essential.

Product Highlights:

Potential Applications:

Search Keywords: 2211CSL002

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

2211C-SL002

Alias/AKA:

2211C-SLATE-500

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
