2254/3-SL001

Name: 2254/3-SL001
Brand: Alpha Wire
SKU: 10119503
Price: 2310.58 USD
Availability: InStock

Slate - 304.8m (1000ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

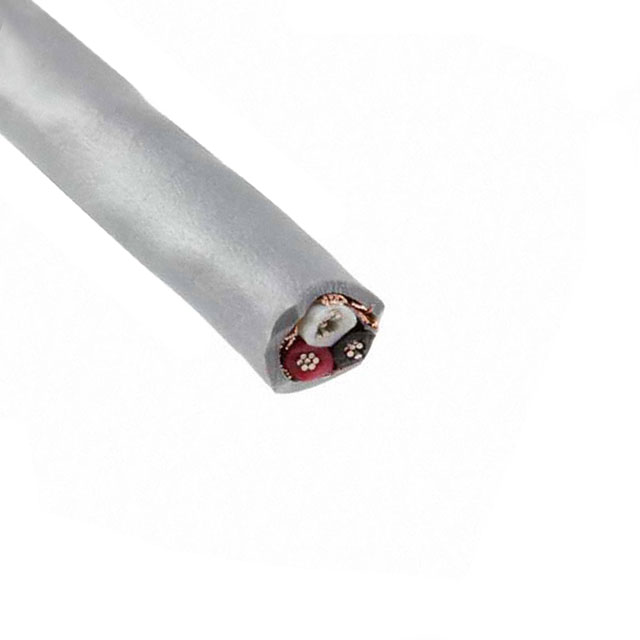

The 2254/3-SL001 is a three-conductor shielded cable assembly designed for low-voltage signal and control applications. It features three 22 AWG tinned copper conductors (7/30 stranding) with 0.016" nominal PVC insulation walls, color-coded black, red, and white per Alpha Wire Color Code D1. The cable assembly is constructed with 6.0 twists per foot minimum, wrapped with clear Mylar tape at 25% overlap, and protected by a bare copper spiral shield with 95% coverage minimum. The outer PVC jacket is 0.020" nominal wall thickness in slate color, with an overall cable diameter of 0.187 inches (0.197 inches maximum). Electrical specifications include a 300V RMS voltage rating, conductor DC resistance of 16.3 O/1000ft at 20°C, and capacitance of 39 pF/ft at 1 kHz between conductors. The cable operates reliably over a temperature range of -20°C to 80°C with a minimum bend radius of 10 times the cable diameter, making it suitable for industrial control systems, instrumentation, and general-purpose wiring applications where shielding and reliable signal transmission are required.

Product Highlights:

Potential Applications:

Search Keywords: 22543SL001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

2254/3-SL001

Alias/AKA:

2254/3-SLATE-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
