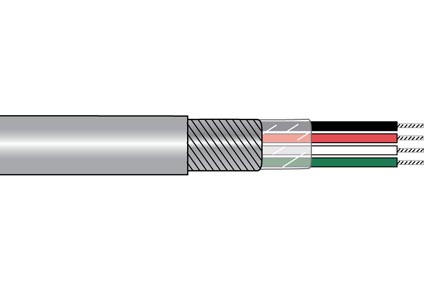

Image is representational - see mfr. specs

2254/4-SL005

Name: 2254/4-SL005
Brand: Alpha Wire
SKU: 10119512
Price: 897.1 USD
Availability: InStock

Alpha Wire

Multi-Conductor Cable Spiral Polyvinyl Chloride 4 Conductors 22AWG 5.51mm 300VAC - Slate - 30.48m (100ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 2254/4-SL005 is a four-conductor shielded twisted-pair cable assembly manufactured by Alpha Wire, designed for low-voltage signal transmission and control applications. The cable features 22 AWG tinned copper conductors (7/30 stranding) with 0.016" nominal PVC insulation, twisted at 6.0 twists per foot minimum and wrapped with clear Mylar tape at 25% overlap. A braided copper spiral shield provides 95% minimum coverage, enclosed within a 0.020" nominal PVC jacket in slate color. The cable operates over a temperature range of -20°C to +80°C with a voltage rating of 300V RMS, making it suitable for industrial control systems, instrumentation, and data acquisition applications where reliable signal integrity and EMI protection are required.

Product Highlights:

Potential Applications:

Search Keywords: 22544SL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

2254/4-SL005

Alias/AKA:

2254/4-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
