2413C-SL005

Name: 2413C-SL005
Brand: Alpha Wire
SKU: 10119644
Price: 156.99 USD
Availability: BackOrder

Communication Cable Tape Flame Retardant High Density Polyethylene 3 Conductors 20AWG 5.2mm 300VAC - Slate - 30.48m (100ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

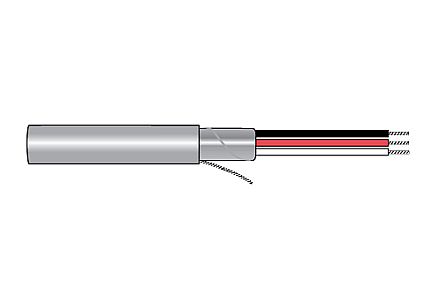

The 2413C-SL005 is a three-conductor shielded cable designed for general-purpose signal and control applications requiring electromagnetic interference protection. It features 20 AWG (7/28) tinned copper conductors with FRPE insulation (0.016" wall), arranged in a twisted configuration at 5.3 twists per foot minimum, and protected by an aluminum/mylar tape shield with 25% overlap and a 20 AWG tinned copper drain wire. The cable is jacketed with 0.020" nominal PVC in slate color and is rated for 300 V RMS with a temperature range of -20 °C to +75 °C. Key electrical characteristics include a conductor DC resistance of 10.2 O/1000 ft at 20 °C, capacitance of 23.9 pF/ft (conductor-to-conductor) and 43 pF/ft (ground) at 1 kHz, and inductance of 0.19 µH/ft. This cable is commonly used in industrial control systems, instrumentation, and audio applications where shielding and reliable signal transmission are essential.

Product Highlights:

Potential Applications:

Search Keywords: 2413CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

2413C-SL005

Alias/AKA:

2413C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
