2845/7-RD001 by alpha wire

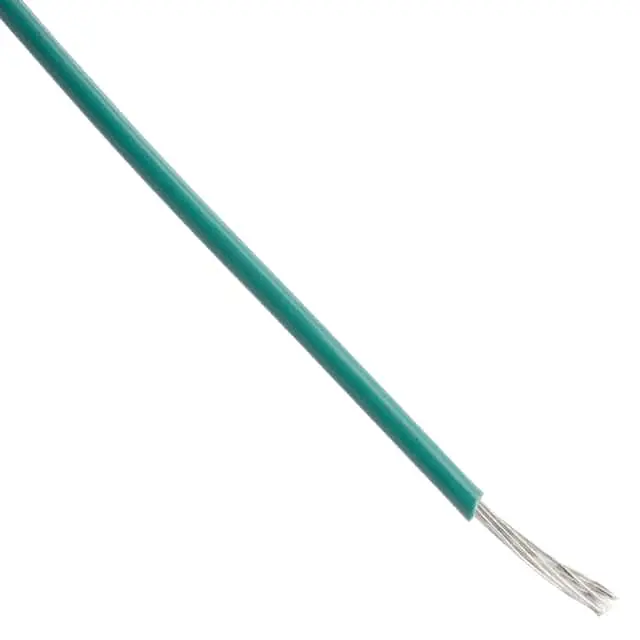

Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

2845/7-RD001

Hook-up Wire 22AWG 304.8m 1.07mm Silver Plated Copper - Red - 250V - 304.8m (1000ft)/Spool ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 2845/7-RD001 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and conductivity. It features a 22 AWG (7/30) stranded copper conductor with a nominal 0.006" wall PTFE insulation, providing excellent dielectric properties and chemical resistance. The wire is rated for 250V RMS operation and maintains performance across a temperature range of -60°C to +200°C, with a maximum pull tension of 5.5 lbs and a minimum bend radius of 10 times the cable diameter. This construction complies with military specification MIL-W-16878/6 (Type ET) and NEMA HP3-ETX8FB standards, making it suitable for aerospace, industrial control, and laboratory instrumentation applications where durability and regulatory compliance are essential.

Search Keywords: 28457RD001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
2845/7-RD001
Alias/AKA:
2845/7-RED-1000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Size:
22 AWG
Bunch Stranding:
7x30
Conductor Material:
Silver Plated Copper
Cable Diameter:
1.11 mm
Maximum Voltage Rating:
250 VAC
Operating Temperature:
-60 to 200 °C
Color:
N/R
  Different packaging options available.  See Alternatives

IN STOCK: 0

On Order: 1   can ship 1/25/27

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1
$1,078.13
3
$1,063.37
5 +
$1,035.02
