3050-YL005 by alpha wire

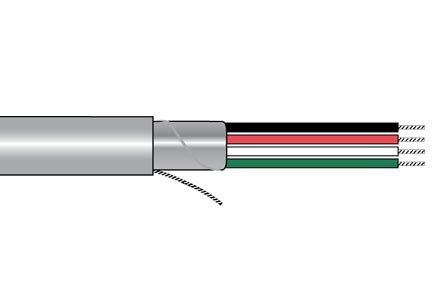

Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

3050-YL005

Hook-up Wire 24AWG 1.45mm Tinned Copper - Yellow - 300VAC - 30.48m (100ft)/Spool ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 3050-YL005 is a single-conductor hookup wire featuring 24 AWG tinned copper conductor with 0.016" nominal PVC insulation wall thickness, designed for general-purpose electrical interconnections. It is rated for 300 VRMS with operating temperatures ranging from -40°C to 105°C and complies with UL AWM styles 1007 (80°C) and 1569 (105°C), as well as CSA TR-64 and VW-1 flame ratings. The wire exhibits a nominal inductance of 0.07 µH/ft and a conductor DC resistance of 25 O/1000 ft at 20°C, with a maximum pull tension of 3.5 lbs and a minimum bend radius of 10 times the cable diameter. This wire is commonly used in control circuits, instrumentation, and low-voltage power distribution applications where reliable insulation and temperature stability are required.

Search Keywords: 3050YL005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
3050-YL005
Alias/AKA:
3050-YELLOW-100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
24 AWG
Bunch Stranding:
7x32
Conductor Material:
Tinned Copper
Cable Diameter:
1.47 mm
Maximum Voltage Rating:
300 V
Operating Temperature:
-40 to 105 °C
Color:
N/R
  Different packaging options available.  See Alternatives

IN STOCK: 4

Can Ship immediately

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$45.85
5
$42.89
10
$41.61
25
$39.93
50
$38.66
100
$37.39
250 +
$35.70
Log in for special pricing
