3053-GR005

Name: 3053-GR005
Brand: Alpha Wire
SKU: 10122061
Price: 66.83 USD
Availability: OutOfStock

Alpha Wire

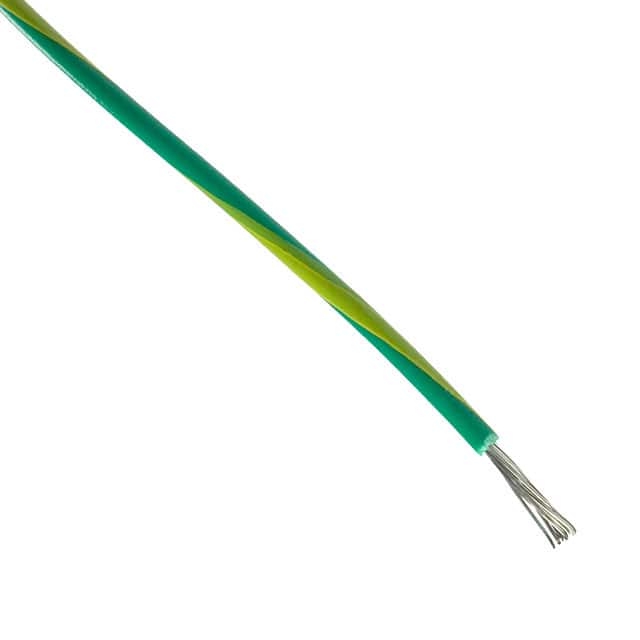

Hook-up Wire 20AWG 1.8mm Tinned Copper- Green - 300VAC - 30.48m (100ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 3053-GR005 is a 1×1 hookup wire featuring a 20 AWG (10/30) tinned copper conductor with 0.016" nominal PVC insulation wall thickness. It is rated for 300 VRMS and operates across a temperature range of -40°C to +105°C, meeting UL AWM Style 1569 (105°C) and Style 1007 (80°C) standards, as well as CSA TR-64 (90°C) and FT1 flame ratings. The wire exhibits a nominal inductance of 0.05 µH/ft and a conductor DC resistance of 11.4 O/1000 ft at 20°C, with a maximum pull tension of 7.9 lbs and a minimum bend radius of 10× cable diameter. This hookup wire is ideal for general-purpose wiring in control circuits, instrumentation, and low-voltage applications where flame resistance and temperature stability are required, and is available in multiple colors and put-ups ranging from 1000 ft to 5000 ft spools.

Product Highlights:

Potential Applications:

Search Keywords: 3053GR005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

3053-GR005

Alias/AKA:

3053-GREEN-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
