6012C-SL005

Name: 6012C-SL005
Brand: Alpha Wire
SKU: 10129304
Price: 340.94 USD
Availability: InStock

Multi-Conductor Cable Aluminum/Mylar Tape Polypropylene 12 Conductors 22AWG 10.05mm 300VAC - Slate - 30.48m (100ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

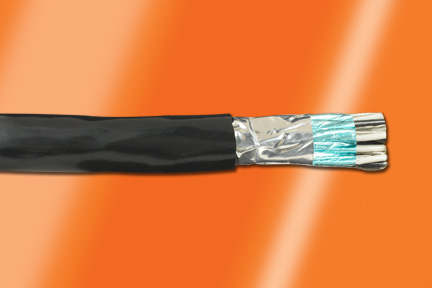

The 6012C-SL005 is a six-pair shielded twisted-pair communication cable designed for signal transmission in industrial and commercial applications. It features 22 AWG tinned copper conductors with polypropylene insulation (0.010" wall nominal), individually twisted at 8.0 twists per foot, and wrapped with foil-free aluminum/mylar tape shielding with 25% overlap and a drain wire for grounding. The cable assembly comprises six shielded pairs cabled together at 3.0 twists per foot with a clear mylar core wrap, all enclosed in a 0.048" nominal PVC jacket (slate color) rated for -20°C to +75°C operation. With a characteristic impedance of 60O, voltage rating of 300V RMS, and low inductance of 0.18 µH/ft, this cable is ideal for data communication, instrumentation, and control systems where noise immunity and signal integrity are essential.

Product Highlights:

Potential Applications:

Search Keywords: 6012CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6012C-SL005

Alias/AKA:

6012C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
