6036C-SL005

Name: 6036C-SL005
Brand: Alpha Wire
SKU: 10129385
Price: 771.55 USD
Availability: InStock

Twisted Pair Cable Polypropylene 12 Conductors 20AWG 11.88mm 300VAC - Slate - 30.48m (100ft)/Spool ...

View Datasheet

Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

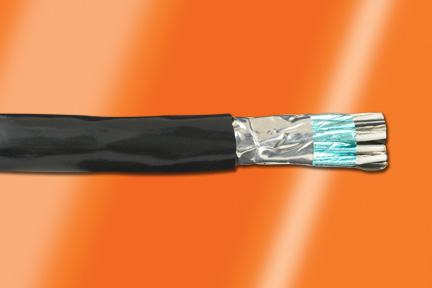

6036C-SL005 is a 6-pair shielded multi-conductor cable designed for instrumentation and control applications. It features 20 AWG (7/28) tinned copper conductors with polypropylene insulation and individually shielded pairs using aluminum/Mylar foil tape with 22 AWG drain wires. The cable has a PVC jacket with a nominal wall thickness of 0.058" and an overall diameter of 0.472 inches (0.493 inches maximum). With a temperature range of -20 to 75°C, voltage rating of 300 V RMS, and characteristic impedance of 61 O, this cable is suitable for environments requiring reliable signal transmission. The slate-colored jacket is UL and CSA listed (CMG, FT4) and complies with RoHS directives.

Product Highlights:

Potential Applications:

Search Keywords: 6036CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6036C-SL005

Alias/AKA:

6036C-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
