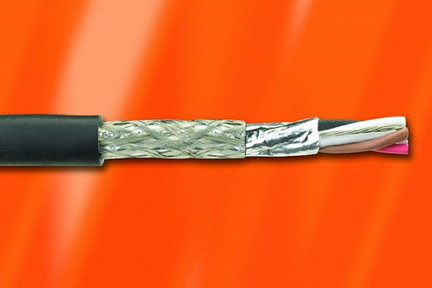

Image is representational - see mfr. specs

6456-BK005

Name: 6456-BK005
Brand: Alpha Wire
SKU: 39132881
Price: 1045.79 USD
Availability: InStock

Alpha Wire

Twisted Pair Cable Tape High Density Polyethylene 6 Conductors 22AWG 10.51mm 300VAC Black - 30.48m (100ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

The 6456-BK005 is a three-pair shielded twisted-pair cable designed for industrial communication and signal transmission applications. It features 22 AWG tinned copper conductors with foam HDPE insulation (0.0225" wall nominal), organized into three pairs with 4.8 twists per foot minimum, and cabled together at 3.2 twists per foot minimum. The cable incorporates an aluminum/mylar tape shield with 25% overlap and tinned copper braid at 65% coverage minimum, plus a 22 AWG tinned copper drain wire, all enclosed in a 0.053" nominal PVC jacket rated for 300 V RMS. With a characteristic impedance of 120 O ±12, conductor DC resistance of 15.3 O/1000ft at 20°C, and operating temperature range of -20°C to +60°C, this cable is ideal for RS485 industrial networks, instrumentation, and data acquisition systems requiring reliable shielded signal transmission.

Product Highlights:

Potential Applications:

Search Keywords: 6456BK005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6456-BK005

Alias/AKA:

6456-BLACK-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
