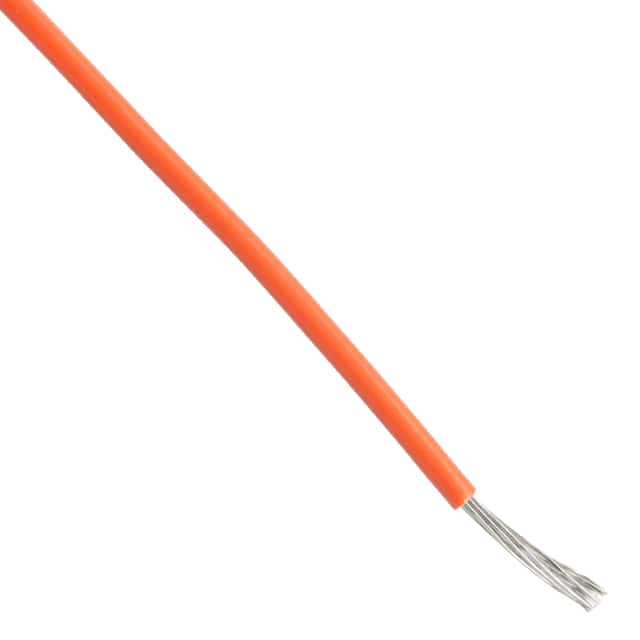

Image is representational - see mfr. specs

6712-OR005

Alpha Wire

Hook Up Wire - Stranded - 24 (7/32) AWG - 600V - mPPE - Orange - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

6712-OR005 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and flame resistance. The wire features a 24 AWG tinned copper conductor (0.024" diameter) with a 0.0095" wall of modified polyphenylene ether insulation, providing an overall diameter of 0.043±0.002 inches. It is rated for 600V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 VW-1 and CSA C(RU) AWM I A/B FT1 specifications, with halogen-free construction and compliance with IEC 60332-2 flame behavior standards. The wire exhibits a nominal inductance of 0.05 µH/ft and conductor DC resistance of 25 O/1000ft at 20°C, with a maximum pull tension of 3.5 lbs and a minimum bend radius of 10 times the cable diameter. This product is ideal for control circuits, instrumentation, and general wiring applications where flame resistance and environmental compliance are required.

Product Highlights:

Potential Applications:

Search Keywords: 6712OR005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6712-OR005

Alias/AKA:

6712-ORANGE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
