6712-VI001 by alpha wire

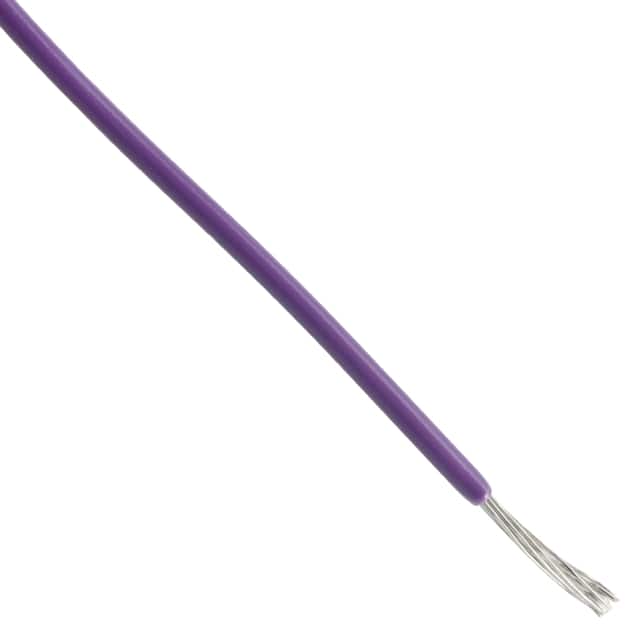

Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

6712-VI001

Hook Up Wire - Stranded - 24 (7/32) AWG - 600V - mPPE - Violet - 1000 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 6712-VI001 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and flame resistance. It features a 24 AWG tinned copper conductor (7/32 stranding) with 0.0095 inch wall modified polyphenylene ether insulation, achieving an overall diameter of 0.043 ± 0.002 inches. The wire is rated for 600 V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 VW-1, CSA C(RU) AWM I A/B FT1, and IEC 60332-2 flame behavior standards, with halogen-free construction for environmental compliance. It operates reliably across a temperature range of -40°C to 105°C with a minimum bend radius of 10 times the cable diameter and exhibits low inductance of 0.05 µH/ft. This wire is ideal for internal wiring in electronic equipment, control circuits, and applications where flame resistance and RoHS compliance are required.

Search Keywords: 6712VI001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
6712-VI001
Alias/AKA:
6712-VIOLET-1000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
24 AWG
Bunch Stranding:
7x32
Conductor Material:
Tinned Copper
Cable Diameter:
1.09 mm
Maximum Voltage Rating:
600 V
Operating Temperature:
-40 to 105 °C
Color:
Violet
  Different packaging options available.  See Alternatives

IN STOCK: 2

Can Ship immediately

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$293.89
3
$285.72
5
$285.01
10
$281.81
20 +
$274.30
Log in for special pricing
