6713-SL001

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - Slate - 1000 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

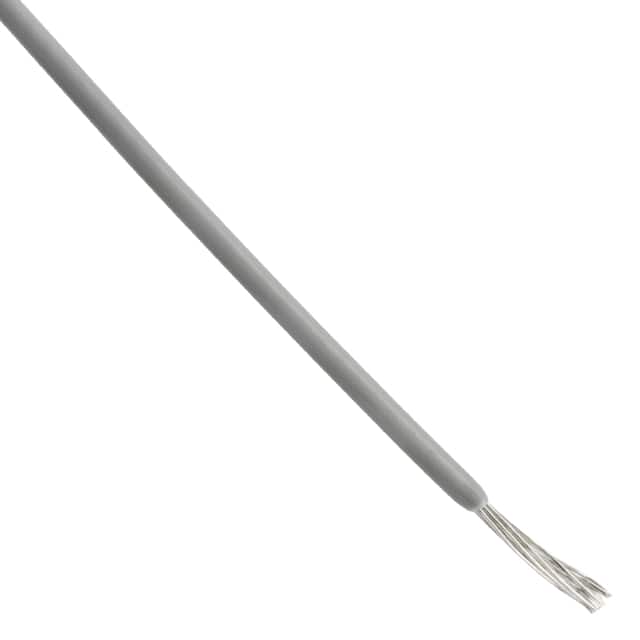

The 6713-SL001 is a 22 AWG hookup wire designed for general-purpose electrical connections and wiring applications. It features a 7/30 stranded tinned copper conductor with a 0.0095 inch nominal wall of modified polyphenylene ether insulation, providing an outer diameter of 0.049 ± 0.002 inches. The wire is rated for 600V RMS at temperatures up to 105°C and meets UL AWM/STYLE 11028 and VW-1 standards, as well as CSA International C(RU) AWM I A/B FT1 specifications. It exhibits a conductor DC resistance of 16.2 O/1000 ft at 20°C and an inductance of 0.04 µH/ft, with a maximum pull tension of 5.5 lbs and a minimum bend radius of 10 times the cable diameter. This wire is ideal for internal wiring in electronic equipment, control circuits, and general hookup applications where reliable, temperature-resistant connections are required.

Search Keywords: 6713SL001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
6713-SL001
Alias/AKA:
6713-SLATE-1000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
22 AWG
Bunch Stranding:
7x30
Conductor Material:
Tinned Copper
Cable Diameter:
1.24 mm
Maximum Voltage Rating:
600 V
Operating Temperature:
-40 to 105 °C
Color:
Slate

IN STOCK: 2

Can Ship immediately

Manufacturer Stock: 3   can ship 11/16/26

Factory Lead-Time 16 Weeks can ship 2/22/27

Price (USD)

Qty
Unit Price
1
$350.48
3
$340.73
5
$336.07
10
$335.23
20 +
$327.11
