6713-WH005

Alpha Wire

Hook Up Wire - Stranded - 22 (7/30) AWG - 600V - mPPE - White - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

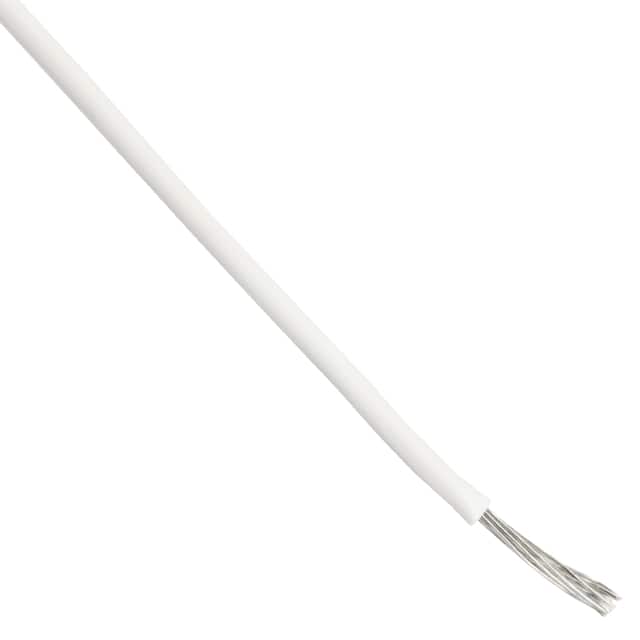

6713-WH005 is a 22 AWG single-conductor hookup wire manufactured by Alpha Wire, designed for general-purpose electrical connections in applications requiring UL AWM/STYLE 11028 compliance. The wire features a 7/30 stranded tinned copper conductor with a 0.0095" wall nominal modified polyphenylene ether insulation, providing an overall diameter of 0.049 ± 0.002 inches. It is rated for 600 V RMS at 105°C continuous operation with VW-1 flame rating and CSA C(RU) AWM I A/B FT1 certification. The wire operates reliably across a temperature range of -40°C to 105°C, has a maximum bend radius of 10 times the cable diameter, and exhibits a conductor DC resistance of 16.2 O/1000 ft at 20°C. This RoHS-compliant wire is ideal for internal wiring in control panels, instrumentation, and general hookup applications where compact gauge and reliable insulation are required.

Product Highlights:

Potential Applications:

Search Keywords: 6713WH005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6713-WH005

Alias/AKA:

6713-WHITE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
