6825-BK005

Alpha Wire

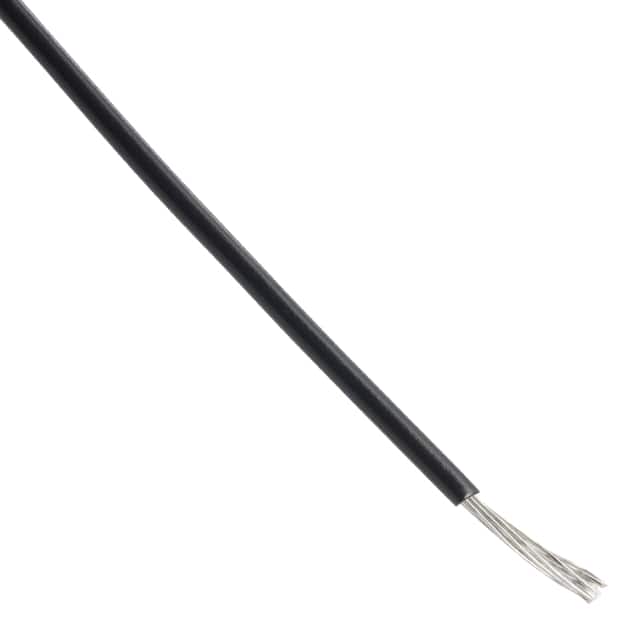

Hook Up Wire - Stranded - 18 (19/.0092) AWG - 300V - mPPE - Black - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

6825-BK005 is an 18 AWG hookup wire designed for general-purpose electrical connections and wiring applications. The wire features a 19-strand bare copper conductor (0.046" diameter) with 0.008" wall modified polyphenylene ether insulation (0.062" ± 0.002" outer diameter), providing robust electrical and mechanical performance. It is rated for 300 VRMS at 110°C continuous operation and is halogen-free and RoHS 2 compliant, meeting EU Low Voltage Directive 2006/95/EC and ISO 6722 standards. The wire exhibits a conductor DC resistance of 6.6 O/1000 ft at 20°C and an inductance of 0.03 µH/ft, with a maximum pull tension of 12.6 lbs and a minimum bend radius of 10 times the cable diameter. Available in multiple colors including black, white, red, green, yellow, blue, brown, orange, and green/yellow, this wire is suitable for automotive, industrial control, and general-purpose wiring where halogen-free construction and temperature stability are required.

Product Highlights:

Potential Applications:

Search Keywords: 6825BK005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

6825-BK005

Alias/AKA:

6825-BLACK-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
