7035-BK005

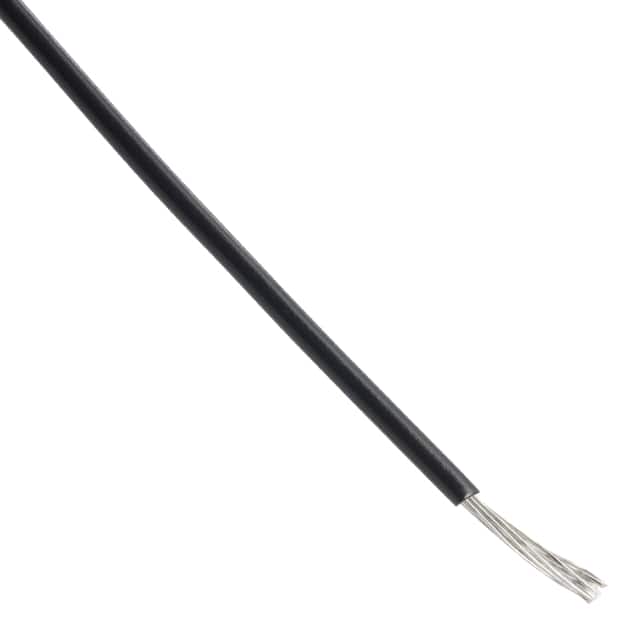

Hook-up Wire - Stranded - 14 (19/27) AWG - PVC Black - 100 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 7035-BK005 is a single-conductor hookup wire featuring 14 AWG tinned copper conductor (19/0147 stranding) with 0.016" nominal PVC insulation wall, irradiated for enhanced durability. It is rated for 300V RMS at 105°C and complies with UL AWM/STYLE 3317, CSA REW-XLPVC FT1, and MIL-W-16878E Type C specifications, with RoHS 2 compliance. The wire operates reliably across a temperature range of -55°C to +105°C, has a maximum pull tension of 32 lbs, and exhibits a conductor DC resistance of 2.7 O/1000ft at 20°C. This hookup wire is ideal for general-purpose electrical interconnections, control circuits, and applications requiring flame-retardant, rated insulation in industrial and commercial equipment.

Search Keywords: 7035BK005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
7035-BK005
Alias/AKA:
7035-BLACK-100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
14 AWG
Bunch Stranding:
19x27
Conductor Material:
Tinned Copper
Cable Diameter:
2.72 mm
Maximum Voltage Rating:
300 V
Operating Temperature:
-55 to 105 °C
Color:
Black

IN STOCK: 4

Can Ship immediately

Factory Lead-Time 17 Weeks

Price (USD)

Qty
Unit Price
1
$303.91
5
$273.00
10
$258.47
20
$257.82
50
$257.17
100 +
$256.53
