Name: 7055-RD001
Brand: Alpha Wire
SKU: 10131446
Price: 309.83 USD
Availability: InStock

DESCRIPTION

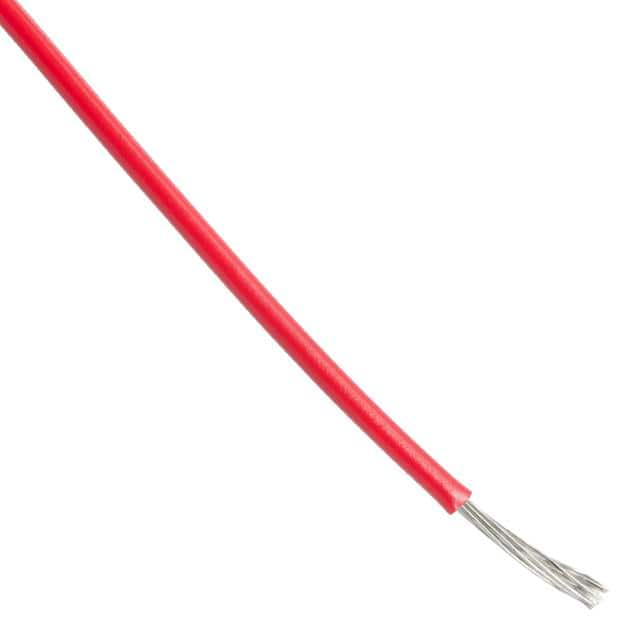

The 7055-RD001 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and conductivity. It features a 22 AWG tinned copper conductor with a nominal 0.010" wall PVC insulation, rated for 150V RMS at 80°C operating temperature. The wire meets UL AWM/STYLE 1429 and CSA AWM IA/B specifications, with military compliance to MIL-W-16878E TYPE B at 105°C/600V RMS, and is RoHS-compliant. With a temperature operating range of -55°C to +105°C, a bend radius of 10X cable diameter, and a maximum pull tension of 5.5 lbs, this wire is suitable for internal wiring in electronic equipment, control circuits, and general hookup applications where durability and regulatory compliance are essential.

Product Highlights:

Potential Applications:

Search Keywords: 7055RD001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

7055-RD001

Alias/AKA:

7055-RED-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Size:

22 AWG

Bunch Stranding:

7x30

Conductor Material:

Tinned Copper

Cable Diameter:

1.3 mm

Maximum Voltage Rating:

150 V

Operating Temperature:

-55 to 80 °C

Color:

Red
