7055-YL005 by alpha wire

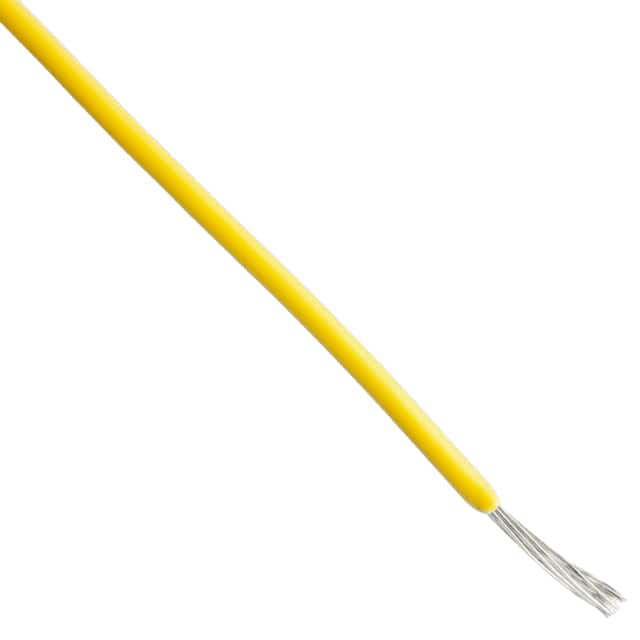

Image is representational - see manufacturer specifications
Alpha Wire Authorized Distributor

7055-YL005

Hook-up Wire - Stranded - 22 (7/30) AWG - PVC Yellow -100 ft - Tinned Copper ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 7055-YL005 is a single-conductor hookup wire designed for general-purpose electrical applications requiring reliable insulation and conductivity. It features a 22 AWG tinned copper conductor (7/30 stranding) with a nominal 0.010" wall PVC insulation, irradiated for enhanced durability, and an outer diameter of 0.050" ± 0.002". The wire is rated for 150V RMS at 80°C and complies with UL AWM/STYLE 1429 and CSA AWM IA/B standards, with military qualification under MIL-W-16878E TYPE B (105°C/600V). It operates reliably across a temperature range of -55°C to +105°C and exhibits a conductor DC resistance of 16.2 O/1000ft at 20°C. This wire is ideal for internal wiring in consumer electronics, instrumentation, and general-purpose hookup applications where cost-effective, standards-compliant connectivity is required.

Search Keywords: 7055YL005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Alpha Wire
Part No:
7055-YL005
Alias/AKA:
7055-YELLOW-100
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Size:
22 AWG
Bunch Stranding:
7x30
Conductor Material:
Tinned Copper
Cable Diameter:
1.3 mm
Maximum Voltage Rating:
150 V
Operating Temperature:
-55 to 80 °C
Color:
Yellow
  Different packaging options available.  See Alternatives

IN STOCK: 7

Can Ship immediately

Manufacturer Stock: 3   can ship 11/16/26

Factory Lead-Time 17 Weeks can ship 3/1/27

Price (USD)

Qty
Unit Price
1
$83.51
5
$74.52
10
$72.30
25
$66.35
50
$66.19
100
$64.58
250 +
$62.10
