7056/19-OR005

Name: 7056/19-OR005
Brand: Alpha Wire
SKU: 10131568
Price: 113.87 USD
Availability: InStock

Alpha Wire

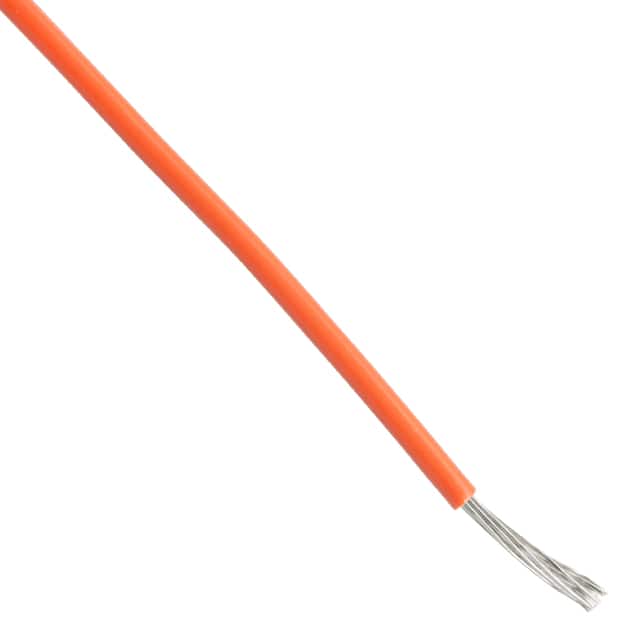

Hook-up Wire - Stranded - 20 (19/32) AWG - PVC Orange - 100 ft - Tinned Copper ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

7056/19-OR005 is a single-conductor hookup wire designed for general-purpose wiring applications. It features a 20 AWG (19/32) tinned copper conductor with a diameter of 0.040 inches and irradiated PVC insulation with a 0.010-inch wall thickness, resulting in an overall insulation diameter of 0.060 ± 0.002 inches. The wire is rated for a temperature range of -55 to 105°C, a voltage rating of 150 VRMS, and offers a conductor DC resistance of 9.3 O/1000ft at 20°C. It is UL listed under AWM Style 1429 and CSA certified, with RoHS and REACH compliance for environmental safety. This wire is ideal for internal wiring of electronic equipment, control panels, and appliances where reliable performance and regulatory compliance are required.

Product Highlights:

Potential Applications:

Search Keywords: 705619OR005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

7056/19-OR005

Alias/AKA:

7056/19-ORANGE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
