9853C-SL005

Multi-Pair Cable - 8 (4 Pair Twisted) Conductors - 20 AWG - 7/28 Conductor Strand - 300V - Slate Jacket - 30.48m (100ft)/Spool. ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

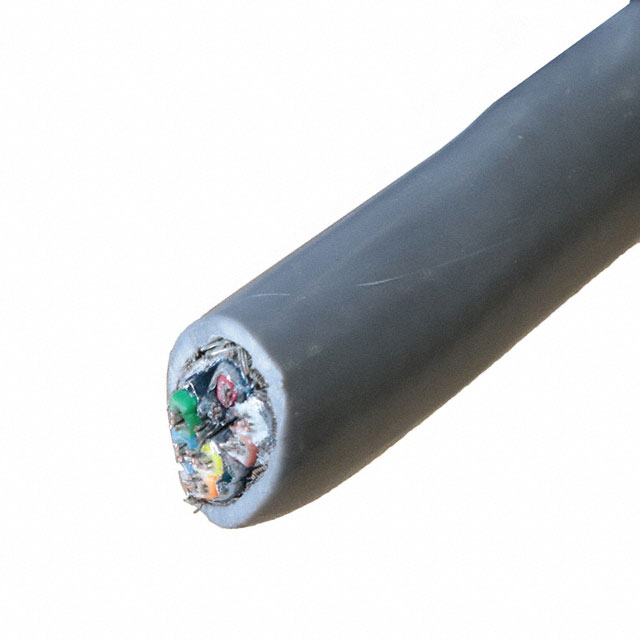

The 9853C-SL005 from Alpha Wire is multi-pair cable with 8 (4 pair twisted) conductors, 20 AWG wire gauge, 7/28 conductor strand and 300V voltage rating. This cable has tinned copper conductor, high density polyethylene (HDPE) / poly-vinyl chloride (PVC) conductor insulation, aluminum/tinned copper foil/braid shield (100%/94% coverage) and slate color poly-vinyl chloride (PVC) jacket with 0.401" (10.19mm) diameter. Operating temperature range is from -20°C to 80°C.

Product Highlights:

Potential Applications:

Search Keywords: 9853CSL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

9853C-SL005

RoHS:

Yes

HTS:

8544200000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
