FIT-321V-1/2-BK016

Name: FIT-321V-1/2-BK016
Brand: Alpha Wire
SKU: 45591500
Price: 179.26 USD
Availability: OutOfStock

FIT-321V 1/2" BLACK 150ft ...

View Datasheet Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

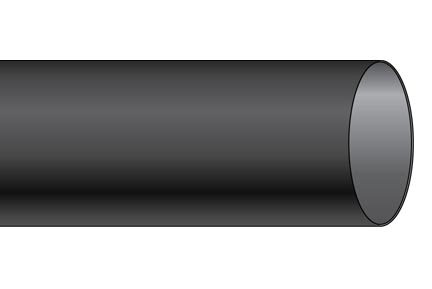

FIT-321V-1/2-BK016 is a flexible cross-linked polyolefin thin wall heat shrinkable tubing designed for wire and cable insulation, bundling, and protection applications. It features a 3:1 shrink ratio with a minimum supplied inner diameter of 0.472 inches and a maximum recovered inner diameter of 0.160 inches, with a nominal recovered wall thickness of 0.033 inches. The tubing operates over a temperature range of -55°C to 135°C, with a full recovery temperature of 135°C and minimum shrink temperature of 90°C. It is UL listed to Standard 224 (125°C / 600 VRMS, VW-1), CSA certified to Standard 198, and meets AMS-DTL-23053/5 Class 1 & 3 specifications. This RoHS-compliant black tubing offers excellent mechanical properties including minimum tensile strength of 1500 psi and 200% elongation, making it ideal for electrical insulation, strain relief, and environmental protection in demanding applications.

Product Highlights:

Potential Applications:

Search Keywords: FIT321V12BK016

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

FIT-321V-1/2-BK016

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

3917320050

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
