M1146-SL005

Name: M1146-SL005
Brand: Alpha Wire
SKU: 39137789
Price: 396.18 USD
Availability: InStock

Slate - 30.48m (100ft)/Spool ...

View Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

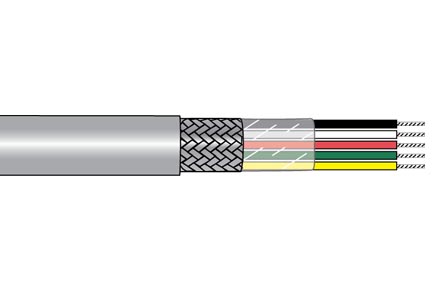

M1146-SL005 is a six-conductor shielded cable assembly designed for control and signal transmission in industrial and electronic applications. The cable features six 18 AWG tinned copper conductors (41/34 stranding) with 0.016" polyethylene insulation, twisted at 3.4 twists per foot minimum and wrapped with clear Mylar tape. A tinned copper braid shield provides 90% coverage minimum, with a 0.035" PVC jacket rated for -20°C to 75°C operation. The cable is rated for 300V RMS with low conductor DC resistance of 7.1 O/1000ft and a maximum pull tension of 83 lbs, making it suitable for instrumentation, control systems, and multi-conductor signal routing where shielding and reliability are essential.

Product Highlights:

Potential Applications:

Search Keywords: M1146SL005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

M1146-SL005

Alias/AKA:

M1146-SLATE-100

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
