M33800-BK001

Alpha Wire

Multi-Conductor Cable Tape Polyvinyl Chloride/Nylon 2 Conductors 18AWG 7.41mm 600VAC Black - 304.8m (1000ft)/Spool ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

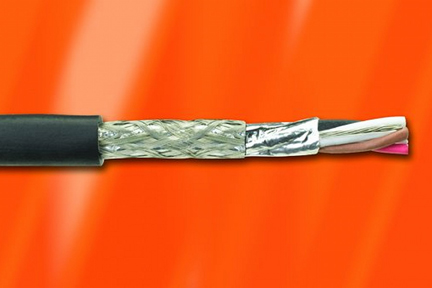

M33800-BK001 is a two-conductor shielded cable assembly designed for control and instrumentation applications requiring reliable signal transmission. The cable features 18 AWG (7/0.152) bare copper conductors with 0.016" nominal PVC wall and 0.005" nylon wall insulation, twisted at 4.8 twists per foot minimum and wrapped with clear mylar tape. The aluminum/mylar shield with foil facing inward and 20 AWG tinned copper drain wire provides excellent electromagnetic interference protection, while the 0.047" nominal PVC jacket in black offers durability and environmental resistance. With a 600V RMS rating, 50O characteristic impedance, and temperature range of -25°C to +90°C, this cable is suitable for direct burial and sunlight-exposed installations in industrial control systems, instrumentation, and outdoor applications where robust shielding and environmental protection are essential.

Product Highlights:

Potential Applications:

Search Keywords: M33800BK001

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Alpha Wire

Part No:

M33800-BK001

Alias/AKA:

M33800-BLACK-1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
